Exploring Beam Bridge Types: Designs, Construction, and Applications

Beam bridges are among the oldest and simplest forms of bridge construction, widely used due to their straightforward design and cost-effectiveness. This article delves into the various types of beam bridges, their structural characteristics, construction methods, advantages, and typical use cases. Understanding these types helps engineers select the appropriate design for specific site conditions and span requirements.

What is a Beam Bridge?

A beam bridge consists of a horizontal beam supported at each end by piers or abutments. The beam carries the load of the bridge deck and traffic, transferring it directly to the supports. Because the beam is simply supported, it experiences bending moments but does not transfer moments through the supports. This simplicity makes beam bridges easy to design and construct but limits their span length, typically to under 250 feet per span unless multiple spans are joined.

Materials used in beam bridges include timber, steel, reinforced concrete, and prestressed concrete. Modern beam bridges often use steel or concrete girders, including plate girders, box girders, or I-beams, depending on load and span requirements.

Types of Beam Bridges

Simply Supported Beam Bridge

The simplest and most common type, the simply supported beam bridge, features a horizontal beam resting on supports at both ends. This design is ideal for short spans and moderate loads. The beam bends under load, transferring forces vertically to the supports. It is cost-effective and quick to build but limited in span length.

Continuous Beam Bridge

Continuous beam bridges extend over multiple supports, creating several spans connected together. This design distributes loads more evenly across supports, reducing bending moments in the beams and allowing longer total spans than simply supported beams. Continuous spans improve structural efficiency and reduce deflections.

Cantilever Beam Bridge

Cantilever beam bridges use beams anchored at only one end, with segments projecting outward from piers. The central span is often suspended between two cantilever arms extending from opposite piers. This design allows construction without falsework in the middle and is suitable for spanning obstacles like rivers or deep valleys where placing piers is difficult.

Tied Arch Beam Bridge

This type combines a beam bridge with an arch structure. The arch supports the beam, and a tie connects the arch ends, preventing horizontal thrust on the supports. This design enhances load distribution and adds aesthetic appeal. It is commonly used for moderate spans where both strength and visual impact are desired.

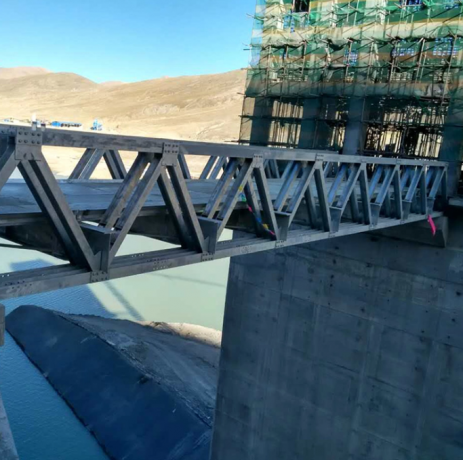

Truss Beam Bridge

Truss beam bridges incorporate a framework of interconnected triangles (trusses) to strengthen the beam. The truss structure efficiently distributes loads and resists bending, enabling longer spans and heavier loads than simple beams alone. Truss bridges are widely used for railways and highways.

Box Beam Bridge

Box beam bridges use hollow, box-shaped beams that provide high torsional stiffness and strength. The enclosed shape allows the bridge to carry heavier loads and span longer distances than solid beams of similar weight. Box girders are common in modern highway and railway bridges.

Structural Components of Beam Bridges

• Beams/Girders: The main horizontal elements carrying loads. Types include I-beams, box girders, plate girders, or trusses.

• Deck: The surface on which traffic moves, supported by the beams. Decks can be concrete slabs, steel plates, or composite materials.

• Piers and Abutments: Vertical supports at the ends and sometimes intermediate points of the bridge that transfer loads to the ground.

• Foundations: Substructures that distribute loads from piers and abutments into the earth.

• Parapets: Safety barriers on the edges of the deck to protect vehicles and pedestrians.

Design Considerations for Beam Bridges

Load Distribution

Beam bridges primarily resist bending moments and shear forces. The beam must be designed to carry dead loads (self-weight) and live loads (traffic, pedestrians). The deck distributes loads transversely to the girders.

Span Length

Beam bridges are best suited for short to moderate spans. Longer spans require multiple supports or specialized designs like cantilevers or continuous beams to reduce bending stresses.

Material Selection

Steel offers high strength and flexibility, suitable for longer spans and heavy loads. Concrete, especially prestressed, provides durability and resistance to environmental factors.

Construction Methods

• Cast-in-place: Concrete is poured on-site, often used for monolithic sections where deck and girders are cast together.

• Precast: Components are manufactured off-site and assembled on-site, speeding construction.

• Composite: Steel girders combined with concrete decks to optimize strength and weight.

Advantages of Beam Bridges

• Simple design and construction

• Cost-effective for short spans

• Quick to build with readily available materials

• Suitable for various traffic types, including pedestrians, vehicles, and trains

• Easily maintained and repaired

Disadvantages of Beam Bridges

• Limited span length without intermediate supports

• Not suitable for very long spans or heavy loads without complex designs

• Aesthetically less appealing compared to arches or suspension bridges

• Requires piers or abutments for support, which may be challenging in some terrains

Notable Examples of Beam Bridges

• Bhupen Hazarika Bridge (Dhola-Sadiya Bridge), India: The longest beam bridge in India, spanning over 9 km, connecting Assam and Arunachal Pradesh.

• Lake Pontchartrain Causeway, USA: The world's longest over-water beam bridge, spanning 39 km in Louisiana.

Frequently Asked Questions (FAQs)

Q1: What is the maximum span length for a typical beam bridge?

A1: Beam bridges generally span up to about 250 feet per span. Longer distances require multiple spans or specialized designs.

Q2: How does a cantilever beam bridge differ from a simply supported beam bridge?

A2: Cantilever bridges extend beams beyond supports, allowing longer spans without central piers, while simply supported beams rest directly on supports at both ends.

Q3: What materials are commonly used for beam bridges?

A3: Timber, steel, reinforced concrete, and prestressed concrete are commonly used depending on span, load, and environmental conditions.

Q4: Why are box girders used in some beam bridges?

A4: Box girders provide high torsional stiffness and strength, enabling longer spans and heavier loads with a lighter structure.

Q5: What are the main limitations of beam bridges?

A5: Their span length is limited without intermediate supports, and they are less suited for very long spans or heavy loads compared to other bridge types like suspension or arch bridges.

Article Summary

Beam bridges are fundamental structures characterized by horizontal beams supported at each end, ideal for short to moderate spans. This article explores various types, including simply supported, continuous, cantilever, tied arch, truss, and box beam bridges, highlighting their design principles, materials, and construction methods. Despite their simplicity, beam bridges remain vital in modern infrastructure due to their cost-effectiveness and adaptability. Understanding their types and applications aids in selecting the right bridge for specific engineering needs.
