Aluminum extrusion is a critical manufacturing process used widely in industries such as construction, automotive, aerospace, and consumer products. At the heart of this process lies the aluminum extrusion press, a complex machine designed to shape heated aluminum billets into continuous profiles of various cross-sections. Understanding the key components of an aluminum extrusion press is essential for optimizing production, ensuring quality, and maintaining equipment longevity.

What Is Aluminum Extrusion?

Aluminum extrusion involves forcing a heated aluminum billet through a shaped die under high pressure. The aluminum flows through the die opening, taking on its cross-sectional shape, and emerges as a continuous profile that can be cut to length and further processed. This process allows manufacturers to produce complex shapes with high precision and excellent mechanical properties.

Overview of Aluminum Extrusion Press Components

The aluminum extrusion press consists of several integral components, each performing specific functions to ensure smooth and efficient extrusion. These components can be broadly grouped into mechanical, hydraulic, and control systems.

Mechanical Components of an Aluminum Extrusion Press

Press Platen and Tie Rods

The press platen is composed of two large steel sections - the front and back platens - which hold the entire press assembly together. They provide the structural integrity needed to withstand the enormous forces generated during extrusion. Tie rods connect these platens, maintaining their alignment and stability under high pressure.

Main Cylinder and Ram

The main cylinder is a hydraulic chamber where pressurized fluid is pumped to generate the force needed to move the ram. The ram is a robust steel rod that pushes the aluminum billet into the container. It applies the extrusion force, compressing the billet against the die to force the aluminum through the die opening.

Dummy Block

Attached to the end of the ram, the dummy block is a tight-fitting steel block that seals the billet inside the container. Its primary function is to prevent backflow or leakage of molten aluminum during extrusion, ensuring all material moves forward through the die.

Container

The container holds the heated aluminum billet during extrusion. It must withstand high pressure and temperature while allowing smooth movement of the aluminum. Containers are lined internally to reduce friction and prevent damage to the billet or container walls.

Die Holder and Die

The die holder secures the die assembly firmly in place. The die itself is the tool that shapes the aluminum profile by defining its cross-sectional geometry. Dies are made from high-strength steel and can be customized for various profile designs, from simple bars to intricate shapes.

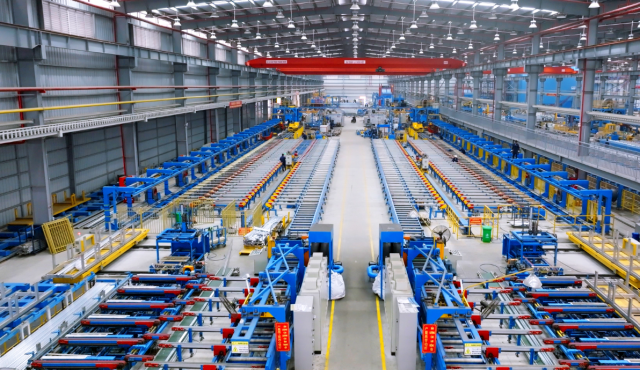

Runout Table and Cooling System

After extrusion, the aluminum profile exits onto the runout table, which supports and guides the profile as it cools. The cooling system uses water sprays or air quenching to solidify the profile's shape and improve mechanical properties, a process known as quenching.

Hydraulic System Components

The hydraulic system powers the extrusion press by generating and controlling the pressure needed to push the ram and billet. Key parts include:

  • Oil Pump and Hydraulic Fluid Reservoir: Supplies and circulates hydraulic fluid.

  • High-Pressure Cylinder: Converts hydraulic fluid pressure into mechanical force to move the ram.

  • Valves and Pipelines: Regulate fluid flow and pressure to ensure precise control of extrusion force and speed.

Proper hydraulic pressure control is vital to avoid damage to the billet or press components and to maintain extrusion quality.

Control System Components

Modern aluminum extrusion presses are equipped with sophisticated control systems to monitor and regulate the entire extrusion process. These systems typically include:

  • PLC (Programmable Logic Controller): Automates machine operations.

  • Human-Machine Interface (HMI): Allows operators to control and monitor parameters such as temperature, pressure, and ram speed.

  • Sensors and Electrical Components: Provide real-time feedback to ensure consistent operation and safety.

How the Components Work Together: The Aluminum Extrusion Process

  1. Billet Preparation: Aluminum billets are cut to size and heated in a furnace to a malleable temperature, typically between 350°C and 500°C.

  2. Loading: The heated billet is placed into the container.

  3. Lubrication: Lubricants are applied to the billet and ram to reduce friction and prevent sticking.

  4. Extrusion: The hydraulic system powers the ram, pushing the dummy block and billet forward. The aluminum flows through the die, taking its shape.

  5. Cooling and Quenching: The extruded profile moves along the runout table where it is cooled rapidly by water or air.

  6. Cutting: Once cooled, the profiles are cut to specified lengths for further processing or shipment.

Advantages of Understanding Aluminum Extrusion Press Components

  • Improved Maintenance: Knowing each component's function helps in timely maintenance and troubleshooting.

  • Enhanced Product Quality: Proper operation of each part ensures consistent extrusion quality.

  • Operational Efficiency: Optimizing hydraulic pressure, cooling, and die selection reduces waste and increases throughput.

  • Customization: Understanding dies and holders enables the production of diverse and complex profiles.

Frequently Asked Questions (FAQs)

Q1: What is the function of the dummy block in an aluminum extrusion press?

A1: The dummy block seals the billet in the container to prevent aluminum from flowing backward during extrusion, ensuring all material moves forward through the die.

Q2: How does the hydraulic system contribute to the extrusion process?

A2: The hydraulic system generates the high pressure needed to move the ram, which pushes the billet through the die, shaping the aluminum profile.

Q3: Why is cooling important after extrusion?

A3: Cooling solidifies the extruded profile, improves mechanical properties, and prevents deformation by rapidly reducing the temperature through quenching.

Q4: What materials are used to make extrusion dies?

A4: Dies are typically made from high-strength, wear-resistant steel to withstand high pressure and temperature during extrusion.

Q5: How do tie rods support the extrusion press?

A5: Tie rods connect the front and back platens, maintaining alignment and structural integrity under the high pressures generated during extrusion.

Article Summary

This comprehensive guide explores the essential components of an aluminum extrusion press, including mechanical parts like the ram, dummy block, container, die, and press platen, as well as hydraulic and control systems. Understanding these components and their functions is crucial for optimizing extrusion quality, machine maintenance, and operational efficiency in aluminum profile manufacturing.
