Introduction to LED Optical Components

LED optical components are critical elements that shape, direct, and enhance the light emitted by LEDs (Light Emitting Diodes). Unlike traditional lighting, LEDs require precise control of light distribution to maximize efficiency and achieve desired lighting effects. Optical components such as lenses, reflectors, and diffusers play a pivotal role in this process by modifying the beam angle, intensity, and quality of light.

Understanding the Basics of LED Optics

What Are LED Optical Components?

LED optical components include the primary optic integrated into the LED itself and secondary optics added externally to further control light output. The primary optic is a small dome that protects the LED chip and shapes its initial light emission. However, this primary optic alone produces a broad, low-intensity beam unsuitable for many applications.

Secondary optics-such as lenses, reflectors, and diffusers-are employed to collect, focus, or spread the light more effectively, enhancing intensity and controlling beam shape for specific uses.

Types of LED Optical Components

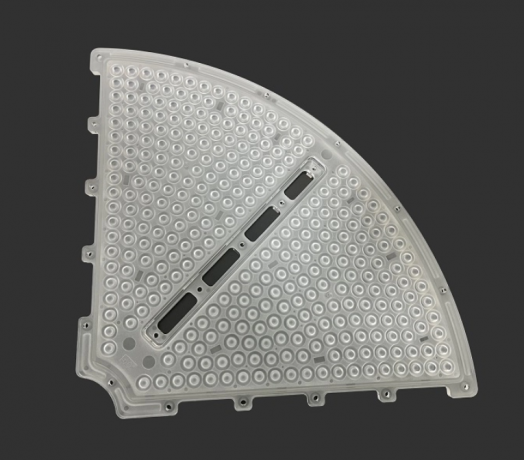

  • Lenses: Typically made from polycarbonate or acrylic, lenses focus or spread light by refraction. They can be convex or concave and are designed to create narrow or wide beams depending on application needs.

  • Reflectors: Usually cone-shaped and metal-coated plastic, reflectors redirect light emitted from the LED to increase brightness and focus the beam. They can have smooth or multifaceted surfaces to produce various lighting effects.

  • Diffusers: Made from frosted or translucent materials, diffusers scatter light to soften shadows and reduce glare, creating uniform illumination.

Primary vs. Secondary Optics

The primary optic is integral to the LED package, protecting the chip and shaping initial light output. Secondary optics are separate components mounted over the LED to further refine the light beam, increasing luminous intensity and directing light precisely where needed.

How LED Optical Components Work

Controlling Light Direction and Distribution

LED optics manipulate the light path to achieve desired lighting effects. For example, lenses can narrow a beam for spotlighting or widen it for general illumination. Reflectors capture stray light and redirect it forward, enhancing brightness and efficiency. Diffusers scatter light to create soft, uniform illumination.

Total Internal Reflection (TIR) Optics

TIR optics combine lenses and reflectors in a single component, typically injection-molded from polymers. They use refractive lenses inside a reflector to direct light efficiently, producing highly controlled and collimated beams with minimal loss.

Surface Treatments and Light Modification

Optical surfaces may be treated with ripples, frosting, or polishing to diffuse light, widen the beam, or shape the distribution pattern. These treatments allow customization of light quality and intensity to suit different environments.

Advantages of Using LED Optical Components

Improved Light Quality

By shaping and directing light precisely, LED optics ensure even, consistent illumination without hotspots or dark areas, enhancing visual comfort and aesthetic appeal.

Enhanced Energy Efficiency

Directing light only where needed reduces wasted light and energy consumption, making LED lighting systems more sustainable and cost-effective.

Flexibility in Lighting Design

Different optical components enable a wide range of beam angles and light patterns, from narrow spotlights to broad floodlights, suitable for diverse applications.

Longevity and Durability

High-quality LED optics are designed to withstand environmental factors, maintaining performance over the long lifespan of LED fixtures.

Applications of LED Optical Components

Architectural and Street Lighting

Precise light distribution is essential to illuminate streets and buildings efficiently while minimizing light pollution and glare.

Industrial and Commercial Lighting

Focused and uniform lighting improves visibility and safety in factories, warehouses, and retail spaces.

Automotive Lighting

LED optics enable bright, focused beams for headlights and tail lights, enhancing road safety.

Specialty Lighting

Museums, sports fields, and display lighting benefit from tailored beam patterns and controlled light intensity to highlight features without damage or distraction.

Key Factors in Selecting LED Optical Components

Beam Angle

Choosing the right beam angle depends on the application-narrow beams for spotlights, wide beams for general lighting coverage.

Light Distribution

Reflectors, lenses, and diffusers offer different ways to direct or spread light; selection depends on desired lighting effects.

Optical Efficiency

Minimizing light loss through refraction and reflection is crucial for maintaining brightness and energy efficiency.

Material Quality

Polycarbonate and glass provide durability and high optical clarity; silicone lenses may be needed for UV resistance.

Compatibility

Optics must match the physical and optical characteristics of the LED source and fixture for optimal performance.

Environmental Considerations

Outdoor applications require weather-resistant optics, while indoor lighting may prioritize aesthetics.

Innovations in LED Optical Technology

Advanced LED Packaging

New LED chip technologies like Chip-on-Board (COB) and Chip Scale Package (CSP) improve brightness and color consistency, influencing optical design choices.

Perovskite LEDs

Emerging perovskite LEDs offer high efficiency and cost-effective manufacturing, potentially transforming future LED optics.

Optical Design Software

Simulation tools help designers optimize optical components for specific lighting goals, reducing development time and costs.

Conclusion

LED optical components are indispensable for maximizing the performance and efficiency of LED lighting systems. By carefully selecting and designing lenses, reflectors, and diffusers, lighting professionals can achieve precise control over light distribution, intensity, and quality. This not only enhances visual experience but also contributes to energy savings and sustainability. As LED technology evolves, innovations in optical components will continue to expand the possibilities for lighting applications across industries.

Frequently Asked Questions (FAQs)

Q1: What is the difference between primary and secondary LED optics?

A1: Primary optics are integrated into the LED package to protect the chip and shape initial light output, while secondary optics are external components like lenses and reflectors that further control and focus the light beam.

Q2: How do LED lenses affect the beam angle?

A2: LED lenses refract light to narrow or widen the beam angle, enabling focused spotlights or broad floodlights depending on the lens design.

Q3: Why are reflectors important in LED lighting?

A3: Reflectors redirect and concentrate light emitted by the LED, increasing brightness and directing light efficiently toward the target area.

Q4: What materials are commonly used for LED optical components?

A4: Polycarbonate and acrylic are common for lenses and reflectors due to their clarity and durability; silicone is used for UV-resistant applications.

Q5: Can LED optics improve energy efficiency?

A5: Yes, by directing light precisely where needed, LED optics reduce wasted light and energy consumption, enhancing overall efficiency.

Article Summary

LED optical components, including lenses, reflectors, and diffusers, are essential for shaping and directing light from LEDs to achieve precise illumination and high efficiency. These components improve light quality, energy savings, and design flexibility across applications such as street lighting, automotive, and commercial spaces. Selecting the right optics involves considering beam angle, material, and compatibility to optimize performance and durability. Advances in LED packaging and optical design continue to expand the capabilities of LED lighting technology.
