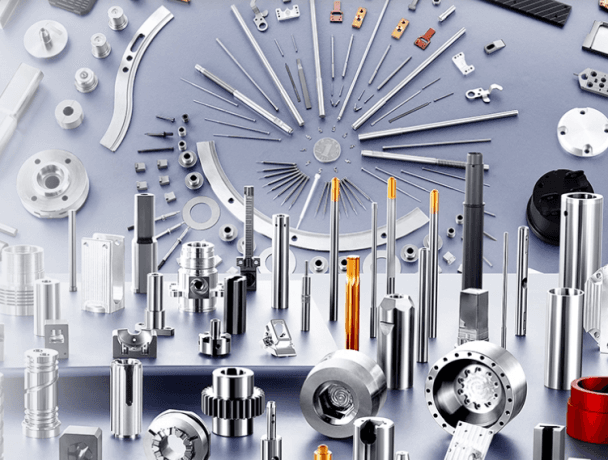

Precision Forged: The Hidden Power of Punch and Die Manufacturing

Few people pause to think about the invisible heroes of modern manufacturing—punches and dies. Yet, these components quietly shape the backbone of almost every industry. Whether producing automotive parts, crafting smartphone metal frames, or creating delicate electronic connectors, punch and die technology determines precision, cost, and performance.

Let's explore how the design, material choice, and innovation behind punch and die systems impact global production and why procurement decisions in this niche can redefine entire supply chains.



Understanding the Concept of Punch and Die

At its core, a punch and die set consists of two matched tools:

• The punch, which applies force to the material.

• The die, which receives that force and controls the shape.

Together, they form, cut, or pierce materials ranging from aluminum and copper to high-strength steel. While simple in theory, their precision is measured in microns. A single deviation in alignment can cause tool wear, scrap production, or dimensional errors.



The Science Behind the Perfect Fit

The relationship between punch and die is about perfect synergy. In metal stamping or forming, the clearance between both parts—the tiny space that determines how the material behaves during deformation—is everything. Too tight, and friction skyrockets; too loose, and precision drops.

Key parameters affecting this harmony include:

• Material hardness of punch and die steel

• Heat treatment uniformity

• Surface finish and coating choice

• Lubrication and temperature control during operation

Each factor is tuned according to the task. For instance, microelectronics production prioritizes ultra-fine tolerances, while automotive structural parts emphasize strength and durability.



Modern Innovations in Punch and Die Technology

Punch and die manufacturing has undergone a quiet revolution. Several emerging technologies are reshaping this field:

• Additive manufacturing of die inserts, allowing intricate cooling channels for temperature stability.

• Coating advancements, such as TiAlN or DLC, extending lifespan up to three times compared to uncoated tools.

• AI-driven predictive wear modeling, reducing unexpected downtime by forecasting tool fatigue.

• Hybrid punches, combining ceramic and steel layers for anti-friction and longevity.

What was once purely mechanical has now become a fusion of data science, metallurgy, and digital twin simulations.



Comparing Traditional vs. Modern Punch and Die Systems

Modern systems favor precision and consistency. Although initial investment may appear higher, the savings in long-term maintenance and scrap rate are substantial. For procurement teams, this cost-efficiency balance becomes a core decision factor.



Selecting the Right Punch and Die Set

For buyers and engineers, selection isn't just about price—it's about compatibility, service life, and repeatability. Consider these critical aspects:

1. Material-to-tool match – Always choose a tool steel compatible with the work material to prevent galling or cracking.

2. Surface treatment – Coatings like TiCN or CrN extend tool life under high friction conditions.

3. Design customization – Complex part geometries often need tailored die cavities.

4. Manufacturer reliability – Quality consistency and after-sales support are key for continuous production.

The right punch and die can transform a production line by improving throughput, reducing regrinding frequency, and even enhancing final product quality.



The Psychological Side: What Buyers Really Value

From a procurement psychology standpoint, decision-makers don't just look for hardness ratings or tolerances—they seek reliability, traceability, and partnership stability. The fear of downtime drives choices as much as technical performance.

Savvy suppliers emphasize:

• Transparent testing certificates

• On-time delivery assurances

• Technical support responsiveness

In tight production cycles, trust is more valuable than steel.



The Sustainability Angle

The future of punch and die systems isn't just about performance—it's also about sustainability. Many forward-thinking manufacturers now use recyclable tool steels, environmentally friendly coatings, and energy-efficient machining processes.

Additionally, regrindable punches extend tool lifespan, minimizing material waste. Combining circular economy principles with precision tooling gives companies both ecological and economic advantages.



Common Challenges and Their Solutions

Even the best-designed punch and die sets face issues over time. Some common problems include:

• Premature wear – Often due to poor lubrication or overheating; advanced coatings can mitigate this.

• Misalignment – Caused by improper press setup; solved through precision guides and optical alignment systems.

• Material sticking – Particularly in aluminum; reduced via mirror-polished surfaces or nitriding treatments.

• Cracking – Typically from excessive stress or wrong hardness balance; offset by optimized heat treatment.

Addressing these proactively improves tool uptime and production reliability.



Global Market Trends and Opportunities

The global punch and die market, driven by aerospace, EV parts, and consumer electronics, is evolving rapidly.
Emerging trends include:

• Microforming for thin sheet applications

• Smart tooling sensors embedded into punches

• Localized manufacturing through 3D printing

• Recycling and remanufacturing initiatives

Asia-Pacific remains dominant in volume, but North America and Europe are leading innovation in digitalized die management systems. For investors, diversification into hybrid punch technologies offers a promising edge.



Looking Ahead: The Future Factory

Tomorrow's factories will treat punches and dies not as consumables, but as intelligent assets. Imagine a die that monitors its wear, communicates with AI-driven maintenance software, and orders its own replacement before failure.

This vision isn't far off—real-time tool analytics, combined with robotic tool changers, will minimize human error and maximize uptime. As Industry 5.0 merges human insight with machine precision, the humble punch and die will continue to form the unseen architecture of progress.



Frequently Asked Questions

1. What materials are most commonly used for making punches and dies?
Tool steels like SKD11, D2, and high-speed steels dominate the field, though carbide and powder metallurgy variants are rising in premium applications.

2. How long does a typical punch and die last?
Depending on material, coating, and usage, lifespan can range from 50,000 to over 1,000,000 cycles.

3. Can modern punches and dies be recycled?
Yes. Many manufacturers reclaim tool steels and reprocess them into new blanks, supporting green manufacturing goals.

4. How does coating technology affect punch and die performance?
Coatings reduce friction, improve hardness, and extend life. They are crucial for high-speed or abrasive operations.

5. What industries benefit most from advanced punch and die systems?
Automotive, aerospace, electronics, and packaging sectors all rely heavily on precision punch and die components.

Summary

Punch and die systems, the unsung heroes of manufacturing, shape everything from cars to smartphones. This article explores their evolving technology, material science, market trends, and buying psychology, revealing how precision tooling drives efficiency and sustainability worldwide.
