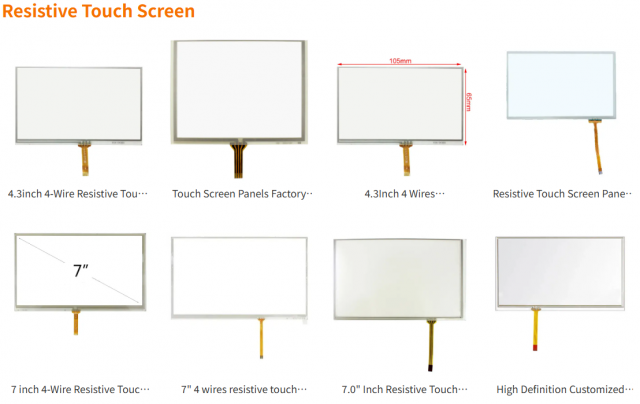

Custom Resistive Touch Screens – Tailored Input Solutions for Industrial and Embedded Applications

please click here:

https://www.reshine-display.com/resistive-touch-screen.html

Introduction

In an increasingly touchscreen‑driven world, capacitive panels often dominate consumer electronics — smartphones, tablets, and modern laptops. Yet beyond the consumer domain, there remains a wealth of applications where a more rugged, flexible, and cost‑effective input method reigns supreme: the realm of the custom resistive touch screen. Designed not for gliding fingers on glass but for reliable operation under gloves, styluses, or in harsh environments, resistive touchscreens deliver a unique combination of adaptability, affordability, and practicality.

This blog dives deep into the principle behind custom resistive touch screens, why they continue to matter today, the trade‑offs versus more popular interfaces, and when designing a custom panel might just be the smartest engineering move you make.

Understanding Resistive Touch Technology

How Resistive Touch Panels Work

At its core, a resistive touchscreen comprises two flexible, transparent layers separated by a tiny gap. The top layer is typically a pliable conductive film, while the bottom layer is a rigid conductive glass or film. When pressure is applied — be it a finger, gloved hand, stylus, or tool — the top layer deforms and makes contact with the bottom. The controller measures the resulting voltage change across the X and Y axes, deducing the exact coordinates of the touch.

That simplicity means resistive panels respond to almost any contact — no need for capacitive charge, skin conductivity, or special touches. The materials are inexpensive, flexible, and easy to source; the electronics are simple; and the manufacturing process can be highly customizable.

Why “Custom” Matters

Off‑the‑shelf resistive touchscreens suffice for many basic tasks, but industrial, embedded, or medical contexts often demand far more — unique sizes, aspect ratios, transparent overlays with printed icons, specialized actuation forces, I/O integration, ruggedized housings, or even custom touch curves. “Custom resistive touch screen” refers to a panel tailored precisely to the needs of a project: glass-to-glass spacing, overlay design, connector type, firmware settings, and overall mechanical integration.

For engineers and product designers, custom resistive panels offer freedom — freedom to design around space constraints, environmental demands, interface ergonomics, and budget.

Advantages of Custom Resistive Touch Screens

Broad Input Compatibility

Since resistive technology simply requires pressure, it supports a wide range of input methods. Gloves, fingernails, styluses — all work equally well. In industrial or medical environments where operators wear protective gloves or need sterile stylus control, this versatility is invaluable.

Cost‑Effectiveness

The simple layered structure uses inexpensive materials and often requires less complexity in controllers compared to capacitive systems. For many embedded or industrial devices with limited budgets or high-volume manufacturing, resistive panels — especially custom ones — can drive down cost dramatically.

High Customizability

Custom panels can match virtually any dimension or aspect ratio, integrate printed overlays (buttons, icons, guides), adopt unique connector types, and adapt sensitivity and actuation force parameters. Designers can tailor everything from outer dimensions to internal stack‑up structure to meet mechanical and ergonomic requirements.

Robustness in Adverse Conditions

Resistive panels are often less susceptible to electromagnetic interference, moisture, or dust compared to capacitive alternatives. Because they rely on physical pressure rather than capacitive coupling or charge leakage, they remain functional even if the surface is wet, dirty, or covered with oil — conditions common in factories, field equipment, and outdoor embedded systems.

Lower Power Consumption (for some use cases)

In many custom embedded applications the system spends long periods in standby or low-power mode. Resistive panel controllers can often be simpler and draw less baseline current, which helps preserve limited power resources.

Tradeoffs and Considerations

Of course, no technology is perfect, and custom resistive touch screens carry tradeoffs worth noting — knowing them helps you make an informed decision.

Reduced Multi‑Touch and Gesture Capability

Resistive panels are typically limited to single-touch detection. Advanced gestures — pinch, swipe, multi-finger—common on modern devices often aren't supported or are awkward to implement. If your application demands multi-touch, zoom gestures, or advanced gesture recognition, resistive may not cut it.

Slightly Lower Optical Clarity and Light Transmission

The layered structure — flexible film, air gap, adhesive — can reduce light transmission and sometimes produce parallax or slight cloudiness compared to ultra-clear capacitive glass. That may or may not matter depending on display brightness, backlighting, or viewing angle.

Mechanical Wear Over Time

Because resistive screens rely on physical contact and deformation, repeated presses may cause wear on the top conductive layer, reducing sensitivity or causing artifacts. For high-cycle applications, you must carefully select materials, overlay hardness, and design actuation force.

Debatable “Premium Feel”

In consumer devices, users expect smooth gliding, fluid gestures, and glass‑like responsiveness — qualities where capacitive panels excel. Resistive screens often feel “plasticky,” with slight springiness or click feedback. This may degrade user impression in consumer-facing products.

When a Custom Resistive Touch Screen Is the Right Choice

Custom resistive solutions shine when your project meets one or more of the following conditions:

Input may come from gloves, styluses, or non-finger implements
Budget constraints or high manufacturing volumes make cost per unit critical
The environment is dusty, wet, oily, or electromagnetic interference is possible
You have unusual display size, aspect ratio, or form factor demands
Power consumption constraints exist, especially in embedded or battery‑operated devices
You don't need advanced gesture recognition or multi-touch support
Printed overlays/buttons/icons must be integrated into panel glass

Examples include industrial control panels, medical equipment, outdoor kiosks, military devices, kiosks that must work reliably in rain or dust, and embedded handheld devices for technicians or field workers.

Designing a Custom Resistive Panel – Key Parameters

Designing a custom resistive touch screen is more than specifying width and height. Below are the essential parameters you should consider carefully.

Parameter	Why It Matters	Typical Values / Tradeoffs
Active Area & Aspect Ratio	Defines the usable touch region — must align with display or UI layout	Any custom size; risk of increased cost if nonstandard long narrow or irregular shapes
Overlay Type & Graphics	Printed icons/buttons can guide user interaction — integrates UI with hardware	Silkscreen, UV-printing, UV-cured overlays; must ensure visibility and durability
Connector Type & Interface	Determines compatibility with embedded boards or controller modules	USB, SPI, I²C — depends on controller and board layout; custom flex cable length and pinout needed
Actuation Force / Sensitivity	Influences user feel, durability, elimination of accidental presses	Lower force = softer feel, but risk of accidental touches; higher force = more durable but less “light-touch”
Cover Material & Hardness	Affects scratch resistance, clarity, and longevity	Hard-coated PET, glass + thin PET, polycarbonate; harder surface = longer life but more brittle
Environmental Sealing & Ruggedization	Important for dusty, wet, or harsh environments	IP‑rating requirements, gasket design, sealed enclosures
Controller Firmware & Calibration	Ensures accurate touch mapping and stable operation	Must match screen size/resolution; may require custom calibration profiles or firmware tweaks

By carefully selecting and specifying these parameters, developers can optimize the panel for their application — balancing cost, durability, usability, and feel.

Custom Resistive vs Standard Off-The-Shelf Resistive vs Capacitive — A Comparative View

Comparison Table

Feature / Criterion	Off-The-Shelf Resistive Screen	Custom Resistive Screen	Capacitive Touch Screen
Input Flexibility (gloves/stylus)	High	High	Often poor or needs special stylus
Physical Dimensions	Fixed — limited presets	Fully customizable	Fixed glass sizes, expensive custom glass
Cost per Unit (low volumes)	Low to moderate	Moderate to high (non‑standard sizes)	High
Custom Overlays / Printed Icons	Difficult or not possible	Fully supported	Possible but often impractical
Environmental Resistance (dust, water, EMI)	Good	Good (can be improved)	Moderate to poor, sensitive to moisture
Multi‑Touch / Gestures	Usually no	Usually no	Excellent
Optical Clarity / Premium Feel	Moderate	Moderate to good	Excellent
Long-term Durability (high cycles)	Moderate	Depends on materials chosen	High (glass)
Development Effort / Lead Time	Minimal	Requires design + manufacturing time	High (glass sourcing, integration)

Interpreting the Table

If you need quick deployment with standard screen sizes and don't mind basic functionality, off‑the‑shelf resistive screens may suffice. On the other hand, if your project demands unique size, overlay graphics, or environmental robustness — and you don't need gestures — custom resistive screens offer a near-ideal solution.

Capacitive screens shine in high-end consumer devices where multi-touch, premium feel, and visual quality dominate. But in rugged, industrial, or cost-sensitive contexts, their benefits may not justify their limitations and price.

Real‑World Use Cases for Custom Resistive Panels

Industrial Controllers and Factory Equipment

Manufacturing environments are dusty, oily, and may involve gloved users. Machine-interface panels need clear icons, predictable touch response, and must withstand mechanical stress. Custom resistive touch panels allow engineers to design exactly the layout needed — with reliable input, glove compatibility, and minimal chance of false touches.

Medical Devices and Healthcare Equipment

Many medical instruments require sterile stylus input, gloved hands, and easy-to-sanitize surfaces. Custom overlays can provide sharply printed icons and dead‑areas. Resistive technology ensures a predictable, robust interface — even in environments where moisture, cleaning agents, or sterilization processes pose a risk.

Outdoor Kiosks, Field Equipment, and Handheld Devices

Devices used outdoors — like kiosks, handheld scanners, field meters — must often handle sun glare, rain, dust, or temperature extremes. Custom resistive panels can be sealed, coated, and tuned for sensitivity under these conditions. They also allow custom sizes to match rugged housings and compact devices.

Embedded Systems with Tight Space or Power Constraints

Embedded systems in transportation, utilities, smart appliances, or automation often require compact displays and minimal power draw. Custom resistive screens — thin, simple, and low-power — fit these constraints nicely. Designers can optimize the panel stack‑up for minimal thickness, minimal draw, and the exact touch region needed.

Best Practices When Specifying a Custom Resistive Touch Screen

When engaging a manufacturer or touch‑panel OEM for a custom design, these best practices help ensure success:

Provide exact drawing/specs for overall size, active area, mounting holes, and connector position. Don't leave ambiguity.
Define usage scenarios: will the device be used with gloves? In bright light? Outdoors? Under water spray? That will determine overlay hardness, coating, and sealing requirements.
Request overlay prototypes — printed graphics on film to test visibility, button size, ergonomics, readability. Simulate real-world lighting and dirty/wet conditions if needed.
Define actuation force or sensitivity curve — too soft and false touches may occur; too stiff and users will struggle. Test using gloves if appropriate.
Clarify controller interface — USB, SPI, I²C — and ensure pinouts, flex cable lengths, connector types are fully specified. Freight delay or mis-wiring can kill a project late-stage.
Ask for durability testing — cycles of presses, environmental exposure (dust, moisture, temperature), scratch resistance tests. Push the limits.
If high-volume production is intended, consider negotiating panel pricing, MOQ, lead times — custom parts often require minimum order quantities and longer lead times.

By treating the custom touchscreen as a full-fledged mechanical and electrical component — not merely a “panel you slap on” — you reduce risk and increase chances of a smooth, reliable final product.

Overcoming Myths and Misconceptions

There are several common misunderstandings about resistive touch technology. Let's debunk a few.

“Resistive is outdated and only suitable for cheap devices”

While it's true that resistive screens power many budget devices, this overlooks how powerful and flexible custom resistive solutions remain. Many rugged, industrial, medical, and embedded devices exclusively use resistive panels — not because of cost alone, but because of unmatched reliability, input flexibility, and environmental tolerance.

“Capacitive is always superior in user experience”

Capacitive may offer smoothness, multi-touch gestures, and glass-like feel — but that only matters if your application demands it. In environments where users wear gloves, or where moisture or grime are common, capacitive panels may underperform or fail outright. Resistive panels — especially custom‑tailored ones — offer a more dependable and purpose‑fit experience in those contexts.

“Custom means expensive and not worth the trouble”

Customization does add complexity, but if you plan ahead, define clear specifications, and order reasonable volumes, the benefits — optimized fit, overlay graphics, environmental sealing, user experience — can outweigh the added cost. For many industrial or embedded applications, custom touch panels reduce overall BOM complexity, reduce need for additional overlays/buttons, and lead to a cleaner, more integrated product.

Steps to Implement a Custom Resistive Touch Screen in Your Project

If you decide that a custom resistive screen is right for you, here is a rough roadmap:

Define your requirements — dimensions, active area, overlay needs, environmental conditions, input method, connector/interface type.
Sketch or CAD your panel layout — including mounting holes, alignment marks, display area, overlay graphics reference, bezel clearance.
Contact reputable touch panel manufacturers or OEMs — share specs, request quote samples, discuss MOQ, lead time, cost.
Order prototypes — including printed overlays and flexible cables. Test with real-world use (gloved inputs, lighting conditions, moisture/dust exposure, power cycling).
Work with software/firmware team to integrate panel controller — ensure communication with your mainboard; calibrate touch coordinates; test responsiveness and latency.
Perform durability and reliability tests — cycles of touches, environmental stress tests, scratch testing, sealing checks, EMI/EMC if needed.
Iterate overlay design if needed — tweak button size, contrast, readability under different lighting or user conditions.
Prepare production documentation — full drawings, BOM, test procedures, QC protocols, packaging instructions.
Scale production carefully — consider MOQ, lead times, cost per unit; plan for spares or revisions.

By following these steps, incorporating feedback loops from hardware and firmware teams, and thoroughly testing in real-world use cases, you significantly reduce risk and ensure a robust, functional, and user‑friendly final product.

When Not to Use a Custom Resistive Touch Screen

Although custom resistive screens have many advantages, sometimes another approach makes more sense. You may want to avoid custom resistive in the following scenarios:

You need multi-touch, gesture-based interaction as a core part of user experience (e.g. pinch-to-zoom, advanced gestures).
Visual clarity, brightness, and glass-like feel are mission-critical — such as premium consumer devices, high-end tablets, or devices where display aesthetics matter.
Budget is extremely tight and unit volume low — off-the-shelf components or simple mechanical buttons may suffice.
Your device operates in extremely high-cycle environments (e.g. tens of millions of touches) without possibility for panel replacement — glass capacitive panels (or even capacitive with hardened cover glass) might deliver longer lifespan.
You cannot wait for custom panel lead times — custom manufacturing often adds weeks or months compared to buying standard parts off the shelf.

In those cases, standard off-the-shelf resistive panels, capacitive ones, or even simple physical buttons might deliver better ROI.

Final Thoughts

Custom resistive touch screens may not capture headlines like glassy-edge-to-edge capacitive displays, but beneath the surface they remain one of the most versatile, practical, and cost‑effective input solutions available for a wide variety of industrial, embedded, medical, and ruggedized devices. Their ability to function under gloves, tolerate moisture, support printed overlays, and be customized to near‑arbitrary dimensions makes them uniquely suited to non‑consumer applications.

Before dismissing resistive panels as “old technology,” engineers and designers should carefully evaluate project requirements — often, a custom resistive touch screen delivers the exact blend of reliability, flexibility, and simplicity needed for mission‑critical systems.

By approaching the design with clear specifications, proper prototyping, and thoughtful integration, you can leverage the strengths of resistive technology, avoid its pitfalls, and deliver a product that works — under real-world conditions — for years to come.

Common Questions & Answers

Q: Can a custom resistive touch screen support stylus input or gloved operation?

A: Yes — resistive screens respond to pressure, so a stylus, gloved hand, fingernail, or even a blunt tool will register touch. That's one of the primary benefits over capacitive screens in industrial or medical contexts.

Q: Is multi-touch or gesture control possible with resistive panels?

A: Typically no. Resistive touchscreens are inherently single-touch: the controller can only detect one point of contact at a time. Advanced gestures like pinch-to-zoom or two-finger swipes are generally not feasible.

Q: How durable is a custom resistive touchscreen under heavy use or harsh environments?

A: Durability depends heavily on materials (top-film hardness, coatings), overlay quality, and environmental sealing. With proper design — hard-coated overlay, sealed casing, correct actuation force — a custom resistive panel can last many millions of touches and withstand dust, moisture, and even EMI.

Q: How does the custom resistive panel affect display clarity compared to capacitive glass?

A: Because resistive panels consist of multiple layers (film, air gap, adhesives), light transmission can be slightly reduced, and light scattering or parallax may occur. For applications requiring high brightness or premium optical clarity, this might be a tradeoff.

Q: What are typical lead times and cost considerations for ordering a custom resistive touchscreen?

A: Lead times vary depending on complexity — from a few weeks for simple sizes to several months for unusual shapes, printed overlays, or low volumes. Cost per unit is higher than off‑the‑shelf parts, especially at low volume, but for medium to large production runs the per‑unit cost often becomes acceptable — and may offer overall BOM savings by eliminating extra buttons or housings.

Summary

Custom resistive touch screens offer robust, flexible, and cost‑effective input solutions for industrial, embedded, and ruggedized applications. By tailoring dimensions, overlays, materials, and sensitivity, designers can meet demanding environmental and ergonomic requirements. While lacking multi‑touch and premium feel, their compatibility with gloves, styluses, and harsh conditions often outweighs drawbacks. For many non‑consumer use cases, a carefully specified custom resistive panel provides reliability and practicality hard to match.
