Introduction
As the demand for more durable, adaptable, and cost-efficient touch interfaces grows, the custom resistive touch screen has re-emerged as a powerful solution for industries that require precision and reliability over aesthetics alone. Unlike consumer-driven capacitive screens, resistive touch technology excels in environments where gloves, styluses, or extreme conditions make traditional touch displays ineffective.
This guide explores how custom resistive touch screens are engineered, what sets them apart, where they outperform other touch technologies, and how device manufacturers can leverage customization to build more competitive products.

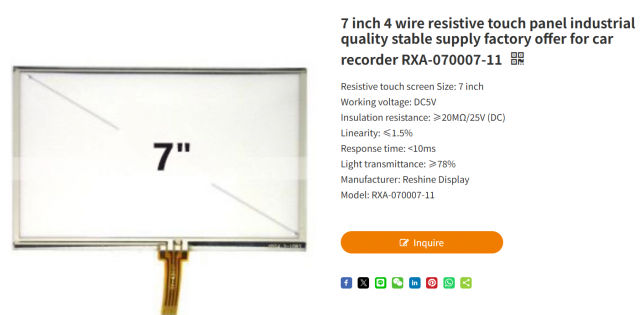

Understanding the Custom Resistive Touch Screen
A custom resistive touch screen is a pressure-sensitive interface designed according to specific size, material, environmental, and electronic requirements. Unlike standard off-the-shelf panels, a customized resistive screen aligns perfectly with the unique needs of OEM devices such as medical systems, industrial equipment, transportation terminals, and handheld instruments.
The screen operates by detecting physical pressure applied to its flexible top layer, registering the touch point through changes in electrical resistance. This method offers high compatibility with various operating conditions, making it a preferred choice for rugged environments.
Why Manufacturers Still Choose Resistive Over Capacitive
Although capacitive touch screens dominate consumer electronics, resistive screens remain indispensable in industrial and specialized markets. The reasons are practical and compelling:
-
They work with gloves, styluses, or any object
-
They are immune to water, dust, and contaminants
-
They deliver precise, single-point accuracy
-
They remain cost-effective in mass production
-
They are easier to customize in shape, size, and circuit design
These features make custom resistive touch screens an essential technology for mission-critical applications.
Key Components of a Custom Resistive Touch Screen
To understand customization options, it's important to know the core components that define a resistive panel's performance.
Top Membrane Layer
A flexible polyester film coated with conductive material. The thickness, coating type, and surface treatment can be custom-engineered.
Bottom Glass or Film Layer
A rigid or semi-rigid substrate. Custom options include polycarbonate, glass (tempered or strengthened), or hybrid materials for specific environmental demands.
Spacer Dots
Microscopic insulating dots that separate the two conductive layers. They influence durability, sensitivity, and lifespan.
Conductive Coatings
Indium tin oxide (ITO) is the common choice, but alternative coatings can reduce cost or improve chemical resistance.
Tail Circuit and Connector
This part is heavily customized:
-
Circuit layout
-
FPC length
-
Connector type (ZIF, solder pads, custom pitch)
Customization Options That Matter
Every custom resistive touch screen is built to meet particular performance requirements. Below are the elements manufacturers can customize.
Size and Aspect Ratio
Resistive screens can be designed in:
-
Standard sizes (2.4", 3.5", 5", 7", 10.1")
-
Full custom dimensions
-
Ultra-wide or narrow shapes
Surface Treatments
To improve usability and durability:
-
Anti-glare
-
Anti-fingerprint
-
UV-resistant coatings
-
Hard coatings for scratch-resistance
Interface Options
Custom layouts allow OEMs to choose:
-
4-wire resistive
-
5-wire resistive
-
8-wire resistive
-
High-accuracy variants for medical instruments
Operating Environment
Customization allows operation in extreme temperatures, heavy humidity, or exposure to chemicals or oils.
Integration Flexibility
Custom resistive screens can be integrated with:
-
LCD modules
-
Cover lenses
-
Enclosures
-
Backlight systems
This makes them ideal for complete turnkey display solutions.
Comparison: Custom Resistive vs. Capacitive Touch Screens
Below is a practical comparison table that highlights where resistive technology shines.
| Feature / Category | Custom Resistive Touch Screen | Capacitive Touch Screen |
|---|---|---|
| Input Method | Finger, glove, stylus, any object | Bare finger, capacitive stylus |
| Environmental Tolerance | Excellent: works in water, dust, oil | Limited; water disrupts performance |
| Precision | High single-point accuracy | Good but optimized for gestures |
| Multi-touch | Limited | Excellent |
| Cost | Generally lower | Higher |
| Customization Flexibility | Very high | Moderate |
| Ideal Applications | Industrial, medical, kiosks, POS, automotive controls | Smartphones, tablets, premium consumer devices |
How Custom Resistive Touch Screens Are Manufactured
The manufacturing process is a combination of electronics engineering, material science, and precision assembly.
Step 1: Substrate Preparation
Glass or film substrates are cleaned and coated with ITO or alternative conductive materials.
Step 2: Circuit Printing
Silver or carbon circuits are printed on the conductive layers to create the electrical pathways.
Step 3: Spacer Dot Application
Micro-dots are added to maintain proper separation between layers.
Step 4: Layer Bonding
The top membrane and substrate are bonded using optical adhesive or PSA. Custom bonding thicknesses are available depending on sensitivity requirements.
Step 5: Tail Circuit Production
The flexible printed circuit is created based on customer specifications and laminated to the panel.
Step 6: Quality Testing
Electrical testing, environmental aging, durability tests, and linearity checks ensure accuracy and lifetime consistency.
Applications of Custom Resistive Touch Screens
Because of their versatility and durability, custom resistive screens are found in many fields.
Medical Equipment
-
Patient monitors
-
Infusion pumps
-
Diagnostic devices
Resistive screens can be operated with surgical gloves and maintain accuracy under sterilization conditions.
Industrial Control Panels
Factories prefer resistive screens for their resistance to dust, oil, and static.
Transportation and Automotive Terminals
From fuel dispensers to ticketing machines, resistive screens function reliably outdoors.
Retail and POS Systems
Their low cost and robustness make them ideal for checkout machines and ordering kiosks.
Military and Field Equipment
Resistive screens handle extreme temperatures, rain, and rough handling better than capacitive alternatives.
The Hidden Advantages of Custom Designs
A custom resistive touch screen offers benefits that off-the-shelf models cannot match.
Perfect Dimensional Fit
No need to redesign your product around a standard panel. The screen fits your device exactly.
Optimal User Interaction
Sensitivity, pressure activation force, and surface texture can be fine-tuned.
Enhanced Reliability
Customizations can dramatically increase lifespan beyond typical commercial models.
Aesthetic Integration
Logos, colors, and unique shapes can be incorporated into the design.
Trends in Resistive Touch Screen Innovation
Although often considered mature technology, resistive screens continue evolving.
Ultra-Low Activation Force
Modern designs allow feather-light touches.
Hybrid Resistive-Capacitive Systems
Some advanced products combine resistive durability with capacitive gestures.
Optical Bonding for Improved Clarity
Optically bonded resistive screens reduce reflections and improve outdoor readability.
New Surface Materials
Advanced hard coatings now achieve scratch resistance closer to glass-based capacitive screens.
How to Choose a Custom Resistive Touch Screen Supplier
The quality of a resistive panel is heavily dependent on engineering expertise. When evaluating suppliers, consider the following:
Engineering Capability
Strong R&D ensures better customization and improved reliability.
Material Quality
Low-quality ITO coatings or adhesives can significantly reduce lifespan.
Custom Circuit Support
Precise FPC design and high-accuracy printing are essential.
Environmental Testing
A reliable supplier should offer:
-
Temperature cycling
-
Vibration tests
-
Humidity resistance
-
Chemical exposure tests
Production Scale
Large-scale manufacturers provide more consistent quality and faster delivery.
Frequently Asked Questions (FAQ)
1. What makes a custom resistive touch screen different from a standard one?
It is designed specifically for a customer's device, allowing modifications in size, surface finish, sensitivity, and electronic interface.
2. Can resistive touch screens work with gloves or styluses?
Yes. They function with any object because they rely on pressure, not electrical conductivity.
3. Are resistive touch screens waterproof?
They are highly tolerant to water, oil, and dust and work reliably in contaminated environments.
4. How long does a custom resistive touch screen typically last?
With proper materials and coatings, they can achieve millions of touch cycles.
5. Can resistive touch screens support multi-touch?
Traditional models support single touch, but newer hybrid designs can simulate limited multi-touch functionality.
Summary
This article explains how custom resistive touch screens offer durability, precision, and full customization for industrial, medical, and commercial devices. It covers their structure, manufacturing, advantages, applications, comparison with capacitive screens, and key factors for selecting the right supplier.
