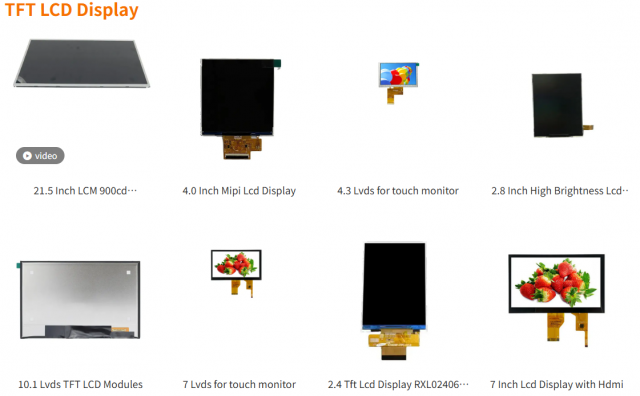

please click here:

https://www.reshine-display.com/tft-lcd-display.html



In a world where electronic devices proliferate across countless applications — from medical instruments to smart home gadgets, industrial control panels to automotive dashboards — the demand for displays that fit perfectly is growing fast. Off‑the‑shelf screens are convenient, but they often fall short when design constraints, environmental conditions, or user experience demand something more precise. This is where a custom LCD display becomes not just an option, but a powerful business and engineering decision. In this article, we dive deep into what a custom LCD display means, why it often beats standard displays, how to approach customization, and what trade‑offs to watch — helping you decide if bespoke is right for your next product.



What Does “Custom LCD Display” Mean

A custom LCD display refers to a liquid‑crystal display module engineered specifically to match a customer's unique needs — whether those relate to physical dimensions, display characteristics, interface requirements, or environmental conditions. Unlike standard, off‑the‑shelf LCDs that follow generic sizes, resolutions, and features, a custom LCD is built through close collaboration between the client (you) and a manufacturer. That allows for precise tailoring of: the screen's shape and size; resolution and pixel density; polarizer type; backlighting; viewing angles; connectivity interfaces; and even coatings or protective glass.

Because of this flexibility, custom LCDs can take forms ranging from small segment‑based displays (for e.g. measuring devices or basic controllers), to full‑color graphical displays embedded in advanced devices — each optimized for its purpose.



Why Choose Custom over Standard: Core Advantages

Here are the principal benefits of opting for a custom LCD design instead of relying on a generic panel.



Precise Fit & Seamless Integration

Custom LCDs can be designed to match the exact dimensions and shape required by your housing, enclosure or device layout. Whether you need a narrow bar-type screen, an unusual aspect ratio, or a specific cut-out, custom manufacturing ensures the display fits without awkward gaps or wasted space. This results in more elegant product design and simplifies enclosure design.

Moreover, because you define the electrical and mechanical interface — pinout, connector type (e.g. FPC, zebra, pins), interface protocol (SPI, RGB, LVDS, MIPI, etc.) — integration with your existing hardware becomes smoother.



Optimized Performance & Visibility for Purpose

Custom LCDs allow you to specify performance attributes that match your use-case. For instance, you might need high brightness and contrast for outdoor or sunlight readability, anti‑glare coatings, wide viewing angles, or wide operating temperature ranges for industrial or automotive environments.

If your application requires touch input — for example, a touchscreen interface — a custom LCD can be built with a compatible touch panel (capacitive or resistive), optimized backlighting, and optional optical bonding. Optical bonding (securing a protective glass to the display) improves readability outdoors or under bright ambient light by lowering reflections and raising contrast.



Better Brand Identity & Differentiation

A custom display becomes part of your product identity. You can choose custom colors, backlighting, custom graphics overlays, or even embed brand logo or unique UI elements directly at the glass level. This helps your product stand out from competitors who rely on generic displays.

This differentiates not only aesthetically, but also functionally — making your device feel more bespoke, higher-end, and tailored to user needs.



Longevity, Durability & Suitability for Tough Environments

Custom LCDs tend to offer enhanced durability. Manufacturers often build them with stronger cover glass, bonding, coatings resistant to scratches, moisture, or dust — making them suitable for demanding environments such as factories, outdoor installations, automotive dashboards, medical devices, or military gear.

Because they are purpose-built, they may also resist temperature extremes, vibration, humidity, or other stressors that standard consumer-grade displays cannot handle.

Long-Term Value Despite Higher Upfront Cost

While a custom LCD display requires more planning, coordination with a manufacturer, and often higher initial cost and lead time than a standard off‑the-shelf panel, the long-term benefits often outweigh that investment. Better integration, fewer modifications, lower system-level costs, reduced maintenance or replacement, and improved user satisfaction all contribute to better ROI over a product lifecycle.

In many industrial or niche applications, a custom display can significantly lower total cost of ownership once you account for better compatibility, fewer failures, and tailored features.



Where Custom LCD Displays Shine: Typical Applications

Because of their flexibility and robustness, custom LCD displays find use across many industries. The most frequent arenas include:

  • Medical Devices: Diagnostic equipment, patient monitors, handheld medical tools where clarity, brightness, anti‑glare coatings, sterilizable surfaces, and precise color rendering are crucial.

  • Automotive & Transportation: Dashboards, infotainment systems, vehicle control panels — where displays must handle vibration, temperature changes, sunlight exposure, and tight space constraints.

  • Industrial & Manufacturing: Control panels, embedded devices, industrial machinery interfaces — environments often harsh (dust, moisture, high temperature), requiring rugged displays with wide temperature tolerance, touch support for gloved hands, and secure mounting.

  • Consumer Electronics & Smart Devices: Smart home devices, IoT gadgets, bespoke consumer hardware — when form factor, design uniqueness, and user interface quality matter more than mass-market standard screens.

  • Outdoor & Embedded Systems: Digital signage, kiosks, outdoor instrumentation — where high brightness, optical bonding (for glare reduction), robust backlighting or transflective modes are needed for readability under sunlight.



What You Need to Decide Before You Order a Custom LCD

Customizing an LCD successfully requires you to define several key parameters — these choices determine how well the resulting display will match your requirements. Below is a non-exhaustive checklist of what you need to consider.

Parameter / Requirement Why It Matters / What to Define
Screen dimensions & shape Ensures the display fits mechanical constraints of your device; avoids wasted space or awkward bezels.
Display type / LCD mode / polarizer type Determines contrast, viewing angles, transmissive vs reflective behavior (for indoor/outdoor), and power consumption.
Resolution & pixel density Impacts clarity, suitability for graphics vs simple text/icons, viewing distance requirements.
Backlighting & brightness / contrast / coatings Essential for readability under various lighting conditions; allows sunlight readability or low‑light usage.
Interface / connectivity (driver, pinout, protocol) Must match your electronics — ensures data/control signals integrate seamlessly with your controller or embedded board.
Touch support or not If you need user interaction; touch type (capacitive, resistive), bonding, controller support.
Environmental / mechanical requirements Operating temperature range, vibration/shock resistance, humidity or water resistance if needed (e.g. outdoor, industrial).
Volume, lead time, cost & MOQ (minimum order quantity) Custom displays often require minimum orders and have longer lead times; must match your production plan.

Defining these parameters carefully — and communicating them clearly to your manufacturer — is the foundation of a successful custom display project.



Trade‑offs and Challenges of Going Custom

Custom LCD displays offer significant benefits — but they also come with trade‑offs. It's important to be aware of them before committing.

  • Higher upfront cost and longer lead time: Custom design, engineering, and tooling take time and money. Depending on complexity, customization may require extended development cycles and investment that outweigh standard solutions in short-run or one-off projects.

  • Minimum order quantities (MOQs): Many manufacturers require a certain volume (especially for full custom panels), which can be prohibitive for small-scale or prototype projects.

  • Design collaboration needed: Achieving the right result demands clear, precise requirements from the client — dimensions, interface, environmental expectations, expected lifespan, etc. Poor communication can lead to costly redesigns or mismatched displays.

  • Longer risk window: Since custom panels are not off-the-shelf, debugging issues (compatibility, driver problems, optical defects) can take more time. Any mistake means rework.

  • Not always cost-effective for simple use-cases: For standard applications where standard displays suffice (e.g. simple monitor, generic device), custom displays might be overkill — the extra cost and complexity may not justify the marginal benefits.

Therefore, whether to choose custom should depend heavily on your product's requirements, expected production volume, and long-term plans.



How to Approach a Custom LCD Project — Step By Step

If you decide to go custom, here's a workflow that helps ensure success.

  1. Define application & environment — Understand exactly where and how the display will be used (indoor / outdoor / industrial / consumer / automotive / medical, etc.), and what environmental stressors it may face (temperature, humidity, light, physical stress).

  2. Specify mechanical and optical requirements — Measure the available display area, decide shape/aspect ratio, bezel requirements, mounting style; define brightness, viewing angles, coatings (anti‑glare, anti-fingerprint), touch needs, etc.

  3. Specify electrical / interface requirements — Determine what controller/driver chip you will use (or plan to use), what interface protocol is needed (SPI, MIPI, etc.), voltage, pinout, connector type, power budget, and whether you need backlight control, touch signals, etc.

  4. Request prototype from manufacturer — Before mass ordering, get a prototype or small pre‑production batch to test mechanical fit, readability, driver compatibility, environmental behavior.

  5. Run real-world tests — Test under expected operating conditions: temperature cycles, humidity, lighting (sunlight, indoor), touch response, long-term durability.

  6. Iterate if needed & finalize for mass production — Make adjustments based on feedback (size tweaks, brightness, interface, coatings), then finalize design, order minimum required quantity, and proceed to manufacturing.

This collaborative, iterative process ensures that the final display truly meets your needs — both functionally and aesthetically.



Custom LCD vs Standard Display: A Comparison

Feature / Attribute Standard Off-the-shelf LCD Custom LCD Display
Size / Shape / Aspect Ratio Predefined, limited options Fully customizable to required dimensions / shape
Integration & Fit May require mechanical adaptation, bezel gaps or special mounting Designed for seamless integration, matching enclosure exactly
Brightness / Contrast / Viewing Angles Generic settings, may not suit all lighting conditions Can be tuned for specific brightness, contrast, and optimized for ambient light or sunlight
Touch / Interface / Connectivity Limited options, might not suit specific controller or protocol Interface/protocol chosen to match your electronics
Durability / Environmental Tolerance Limited; often consumer-grade Can be hardened for industrial, outdoor, automotive, medical environments
Branding / Aesthetics / Custom UI Generic look, limited brand alignment Can embed brand identity: colours, overlay graphics, unique UI layout, coating, etc.
Cost & Lead Time Low cost, readily available Higher upfront cost, longer development lead time, often MOQ required
Flexibility for Future Use-Cases Limited Very high — you define features at design stage to suit current & future needs

This comparison shows that while standard LCDs have their place for simple or commodity use, custom LCDs offer far greater alignment with product-specific demands — at the cost of complexity and initial investment.



When Does It Make Sense to Go Custom — and When Not

You should strongly consider a custom LCD display when:

  • Your device has a non‑standard form factor (e.g. irregular shape, narrow bar, circular, square, etc.).

  • You need the display to operate under challenging environmental conditions (outdoor light, wide temp range, dust/humidity, vibration).

  • You require precise brightness, contrast, viewing angles, or coatings for readability or usability.

  • Your product demands touchscreen input, custom interface, or unique connectivity.

  • You want to embed brand identity or a unique UI aesthetic directly into the display glass or backlight.

  • You are producing at sufficient volume (or plan to) such that the initial cost and MOQ are justified.

Conversely, standard off‑the-shelf LCDs are often fine (and more cost‑efficient) when:

  • The device is simple, generic, or consumer-level, with no unusual physical constraints.

  • Environmental conditions are mild (indoor use under controlled lighting/temperature).

  • Mass customization is not needed; quick time-to-market or low cost is more important than optimization.

  • The production volume is very small, and MOQ or long lead times of custom displays are impractical.



Considerations & Practical Tips for Ordering Custom LCDs

  • Provide very clear mechanical drawings or CAD files (e.g. DWG or DXF) for the display cut-out and housing. Manufacturers often rely on them to ensure perfect fit.

  • Think carefully about interface protocols and what your embedded controller supports. Matching protocol early avoids painful redesign later.

  • If the device will be used outdoors or under variable lighting, consider optical bonding + anti-glare/anti-reflective coatings to improve visibility.

  • For touchscreens, decide on touch technology (capacitive vs resistive) and whether you need glove/water/pen support — to help the manufacturer select the right touch panel and bonding method.

  • Plan for environmental requirements — operating temperature range, humidity, shock/vibration — and specify them to ensure durability and compliance (especially for automotive, industrial, medical, or outdoor use).

  • Order prototypes first. Test thoroughly — mechanical fit, readability, touch response, long-term reliability — before committing to mass production.



Frequently Asked Questions (FAQ)

What is the typical lead time for a custom LCD display?

Lead time depends on complexity: simple customizations (size/shape) might take weeks, while full custom panels — especially with unique glass, coatings, touch panel integration — could require several months due to tooling, prototyping, and testing cycles.

Is the cost of custom LCD always much higher than standard ones?

Upfront cost is usually higher, because customization involves extra engineering, tooling, and manufacturing steps. However, for medium to large production runs or demanding applications, custom LCDs often offer better long-term value — fewer modifications, better performance, less maintenance, and longer lifespan.

Can custom LCDs support touch input and UI overlays?

Yes. Many custom displays incorporate touch panels (capacitive or resistive), and you can request custom overlays or branding — including logos, custom backlight colors, and UI layout — to be built-in at the glass or backlight level. This helps make the device interface more seamless and brand-aligned.

What about environmental durability — can custom LCDs survive harsh conditions?

Absolutely. Custom LCDs can be engineered for wide operating temperature ranges, humidity resistance, dust/water resistance, vibration or shock tolerance, and even outdoor sunlight readability via coatings and optical bonding. These make them suitable for industrial, automotive, outdoor, or medical contexts where generic consumer displays would fail.

Is it practical for small production runs or prototypes?

It depends. For very small runs or one-off prototypes, custom LCDs may be costly and the minimum order quantity (MOQ) requirement might make them impractical. In such cases, standard off-the-shelf displays may suffice — unless you absolutely need unique size, shape, or features that only custom can satisfy.



Questions & Answers

Q: How do I determine whether my application truly needs a custom LCD display instead of a standard one?

A: Start by mapping all your requirements — device dimensions, environmental conditions, brightness/touch/interface needs, production volume, and brand/aesthetic considerations. If standard displays meet them without compromise, go standard. But if you find any constraint (shape, enclosure design, harsh environment, branding, specialized interface), a custom LCD becomes worth considering.

Q: What's the minimum information I should prepare before contacting an LCD manufacturer for custom design?

A: At minimum, you need a mechanical drawing (or CAD file) for your enclosure, precise required screen dimensions and shape, expected resolution or graphical/textual requirements, the desired interface/protocol, expected operating environment (temperature, lighting, dust/humidity), and volume estimates (prototype vs production).

Q: Does customizing a display affect its lifespan or maintenance requirements?

A: Often, custom displays are more durable — built for the intended environment, with protective coatings or bonded glass, which can improve resistance to moisture, dust, scratches, and reduce risk of failures. So maintenance may be less frequent compared to cheap off‑the‑shelf parts in harsh environments.

Q: If I plan to update or upgrade my product later (e.g. new version), will a custom LCD limit flexibility?

A: That depends on how you design. If you build in flexibility — for example, leave room for future interface upgrades, or choose standard protocols — you can maintain upgradability. However, very bespoke shapes or embedded branding may limit reuse across significantly different product versions. It's wise to consider long-term roadmap when specifying custom displays.

Q: Are there any hidden risks when ordering custom LCDs I should be aware of?

A: Yes — risks include miscommunication leading to wrong dimensions or specs, longer lead times delaying your project, higher upfront cost (especially for small runs), minimum order quantities, and potential for supply chain issues. Mitigate these via careful specification, prototype testing, and working with experienced manufacturers.



Conclusion

Custom LCD displays offer a compelling alternative to generic, off‑the‑shelf panels — especially when your product demands precision, durability, a unique form factor, or a distinctive user experience. By allowing you to define size, shape, interface, brightness, coatings, touch integration, and environmental tolerance, custom LCDs empower you to build displays that truly match your device's purpose.

Though the initial investment, lead times, and complexity are higher, the benefits — seamless integration, optimized performance, brand identity, and long-term durability — often justify the choice for industrial, medical, automotive, consumer‑electronic, or embedded systems.

If you are serious about product quality, user experience, and long-term value — especially in non-standard or demanding applications — a custom LCD display is not just a luxury, but a strategic asset.

Questions & Answers Section

  1. How to choose between standard and custom LCD for a new device?

    Evaluate all requirements — size constraints, environmental conditions, interface needs, volume, aesthetics. If standard panels satisfy them, go standard; else custom likely makes sense.

  2. What essential specs must I define before ordering a custom LCD?

    Mechanical dimensions and shape, resolution, interface protocol/pinout, brightness/contrast/coating needs, operating environment (temperature, humidity), touch requirements, and projected production volume.

  3. Are custom LCDs suitable for outdoor or industrial environments?

    Yes — they can be built with high brightness, anti-glare or anti-reflective coatings, optical bonding, wide temperature range, moisture/dust resistance and more, making them very suitable for harsh environments.

  4. Will custom displays increase long‑term reliability compared to standard ones?

    Often yes. Because they are tailored to use-case and environment, with better materials and protective layers, custom LCDs tend to last longer and require less maintenance under stress.

  5. What are the main downsides of using custom LCD displays?

    Higher upfront cost, longer design/production lead time, minimum order quantity requirements, need for clear specification and careful testing — not ideal for very small batches or quick prototypes.

Article Summary


Custom LCD displays offer precise fit, optimized brightness and viewing angles, touch and interface flexibility, and rugged durability — ideal for products with special form‑factors or harsh operating conditions. Though more costly and complex than standard panels, their tailored performance and long‑term value make them a strong choice for serious projects.
