In the competitive landscape of industrial manufacturing, achieving high-quality, uniform coatings on various substrates is essential. Curtain coating machines have emerged as a pivotal solution, offering precision, efficiency, and versatility across multiple industries. These machines allow manufacturers to achieve superior surface quality while minimizing waste and production costs.



Understanding Curtain Coating Machines

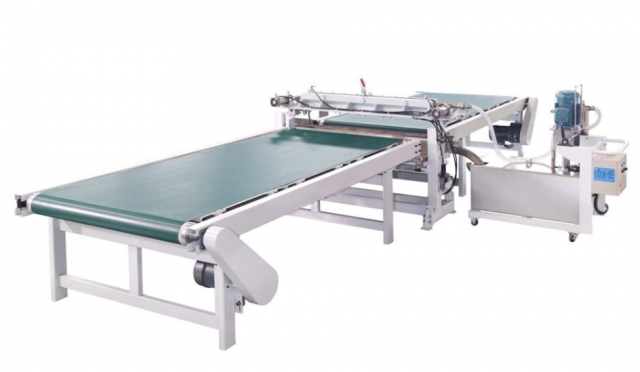

A curtain coating machine is designed to apply liquid coatings to flat or nearly flat substrates in a continuous, controlled manner. The process involves creating a “curtain” of liquid that falls from a nozzle onto a moving substrate. The thickness and uniformity of the coating are determined by parameters such as the flow rate, substrate speed, and curtain height.

Unlike other coating techniques, curtain coating ensures pre-metered and uniform application, reducing material waste and eliminating uneven spots. This is especially crucial in industries where surface quality directly affects product performance, aesthetics, or barrier properties.



Core Components of Curtain Coating Machines

1. Coating Reservoir

The reservoir holds the coating liquid and maintains a consistent level, ensuring smooth and uninterrupted flow to the curtain.

2. Curtain Forming Device

The nozzle or slot die forms a continuous curtain of liquid. Its design ensures laminar flow and prevents splashing, which could otherwise affect uniformity.

3. Conveyor System

The substrate moves under the curtain at a controlled speed. High-precision conveyors prevent vibrations and maintain flatness to achieve uniform coating.

4. Recirculation System

Excess coating is collected, filtered, and returned to the reservoir. This system reduces waste, lowers production costs, and ensures consistent coating quality.

5. Control Panel

Advanced machines include digital control panels to adjust flow rate, substrate speed, curtain height, and temperature. Some models integrate automation and real-time monitoring for improved accuracy.



Advantages of Curtain Coating Machines

Curtain coating machines have distinct advantages over other coating methods:

  • Uniform Coating Thickness: Achieves consistent film thickness, reducing product defects.

  • High-Speed Production: Capable of coating large volumes efficiently.

  • Minimal Material Waste: Recirculation system recovers excess liquid.

  • Versatile Application: Works with water-based, solvent-based, and UV-curable coatings.

  • Enhanced Surface Quality: Smooth, glossy finishes ideal for packaging, electronics, and decorative products.

These advantages make curtain coating machines highly attractive to manufacturers aiming to increase efficiency, reduce costs, and maintain high-quality standards.



How Curtain Coating Machines Work

The operation of a curtain coating machine involves several precise steps:

  1. Substrate Preparation: The substrate must be clean, flat, and free of debris to ensure proper adhesion.

  2. Flow Control: The coating liquid is pumped from the reservoir to the nozzle, forming a laminar curtain.

  3. Application: The substrate moves under the curtain at a controlled speed. Coating thickness is adjusted by altering flow rate or substrate speed.

  4. Recirculation: Excess liquid is collected and reused.

  5. Drying/Curing: After coating, the substrate passes through drying or curing systems such as ovens or UV lamps.

This process enables high precision, even for thin coatings required in electronic or packaging industries.



Industry Applications

Curtain coating technology is applied across diverse industries:

Electronics: Protective coatings on printed circuit boards (PCBs) prevent corrosion and moisture damage.

Packaging: Paper, film, and foil coatings enhance printability, barrier properties, and durability.

Automotive: Decorative and protective coatings on panels, dashboards, and trim pieces improve aesthetics and corrosion resistance.

Furniture & Woodworking: Produces smooth, durable finishes for high-end wooden furniture.

Solar Panels: Coatings applied to photovoltaic cells increase efficiency and longevity.

By adapting the coating formulation and machine parameters, manufacturers can meet industry-specific requirements, from barrier protection to aesthetic finishes.



Technical Considerations

When selecting a curtain coating machine, consider the following technical factors:

  • Viscosity of Coating Materials: Low-viscosity liquids flow easily to form a stable curtain, while high-viscosity coatings may require specialized equipment.

  • Substrate Flatness: Uneven surfaces can cause streaks or uneven film thickness.

  • Environmental Conditions: Airflow, temperature, and vibration can affect curtain stability.

  • Machine Size and Speed: High-volume production may require large machines capable of faster substrate movement.

  • Maintenance Requirements: Regular cleaning and calibration ensure long-term precision and efficiency.

Choosing the right machine and operational settings is critical for achieving optimal performance.



Comparison with Other Coating Methods

Feature Curtain Coating Spray Coating Roll Coating Dip Coating
Coating Thickness Highly precise Moderate Precise Variable
Production Speed High Moderate High Low
Material Waste Minimal High Moderate High
Surface Uniformity High Moderate High Variable
Substrate Compatibility Flat surfaces Complex shapes Flat surfaces Submersion only
Equipment Complexity Moderate High Low Moderate

From this comparison, curtain coating emerges as an ideal choice for high-speed, high-precision industrial applications where uniformity and low waste are priorities.



Innovations in Curtain Coating Technology

Modern curtain coating machines are evolving with technology:

  • Automation & Digital Controls: Integration with sensors and AI for real-time monitoring improves coating consistency.

  • Eco-Friendly Coatings: Adoption of low-VOC, water-based, and UV-curable coatings reduces environmental impact.

  • Smart Maintenance Systems: Predictive maintenance helps avoid downtime by alerting operators to potential issues before failure occurs.

  • Modular Design: Flexible systems allow manufacturers to switch substrates and coatings quickly, supporting rapid production changes.

These innovations ensure curtain coating machines remain at the forefront of industrial coating technology.



Case Studies

1. Packaging Industry: A leading food packaging company adopted curtain coating machines to apply a thin protective polymer layer on paperboard. This resulted in reduced material use, higher line speed, and improved print quality.

2. Electronics Industry: An electronics manufacturer used curtain coating to apply conformal coatings on PCBs. The uniform layer improved product reliability by preventing corrosion and enhancing insulation.

3. Automotive Industry: A car parts supplier used curtain coating for decorative panels. The process delivered a consistent glossy finish with minimal paint waste and faster production cycles compared to spray coating.



Choosing the Right Curtain Coating Machine

When selecting a curtain coating machine for your production line, consider:

  • Production volume and speed requirements

  • Types of substrates and coating materials

  • Desired coating thickness and uniformity

  • Automation and control features

  • Maintenance support and spare parts availability

Selecting the right equipment ensures cost efficiency, high product quality, and smooth integration into existing production lines.



Future Trends

The curtain coating market is expected to grow as industries demand higher-quality finishes and sustainable production methods. Trends include:

  • Integration with Smart Manufacturing: Machines capable of self-adjusting parameters based on real-time measurements.

  • Eco-Friendly Materials: Growing adoption of water-based and UV-curable coatings.

  • Compact and Flexible Designs: Small footprint machines for customized production lines.

  • Energy Efficiency: Machines designed to reduce electricity and solvent consumption without compromising performance.

These trends highlight the potential of curtain coating machines to become even more versatile and indispensable in modern manufacturing.



Frequently Asked Questions

1. What types of substrates are suitable for curtain coating?

Curtain coating works best on flat or nearly flat substrates such as paper, film, metal sheets, and plastic. Irregular surfaces may lead to uneven coating.

2. How does the recirculation system reduce waste?

Excess coating is collected, filtered, and returned to the reservoir, minimizing material loss and lowering production costs.

3. Can curtain coating machines handle thick coatings?

While ideal for low to medium viscosity coatings, some advanced machines are designed to handle higher-viscosity materials with adjustments in nozzle design and flow rate.

4. What maintenance is required for curtain coating machines?

Regular cleaning of the curtain nozzle, inspection of conveyor systems, checking pumps and filters, and calibrating control systems ensure consistent performance and longevity.

5. Are curtain coating machines suitable for small-scale production?

Though generally used in large-scale operations, smaller models exist for R&D, pilot production, or specialized small-batch manufacturing.

6. How does curtain coating compare to spray or roll coating in cost efficiency?

Curtain coating minimizes material waste and reduces labor costs due to automation, making it more cost-efficient for high-speed production compared to spray coating.

7. Can curtain coating be used with eco-friendly coatings?

Yes, water-based and UV-curable coatings are compatible with curtain coating systems, supporting sustainability goals and regulatory compliance.

Article Summary

Curtain coating machines offer high-speed, precise, and efficient coating for flat substrates across industries such as electronics, packaging, automotive, and furniture. With minimal waste, uniform application, and adaptability to eco-friendly coatings, they are indispensable for modern manufacturing. Emerging trends include automation, smart maintenance, and sustainable coating solutions.
