Scaffolding systems are an integral part of modern construction, providing critical support for workers, materials, and equipment. Among the many types of scaffolding, Cuplock scaffolding has emerged as a popular choice due to its unique design, modular flexibility, and efficiency. This article explores Cuplock scaffolding in depth, covering its components, advantages, limitations, applications, and comparison with other scaffolding systems, providing an exhaustive resource for industry professionals and construction enthusiasts alike.
Introduction to Cuplock Scaffolding
Cuplock scaffolding is a modular system widely used in construction projects worldwide. Its signature feature is a cup-and-lock mechanism that connects vertical standards to horizontal ledgers and transoms, eliminating the need for nuts and bolts. This design allows for fast assembly, disassembly, and versatile configuration, making it a reliable solution for projects of varying scales.
The system is suitable for residential, commercial, and industrial projects and has proven especially useful in high-rise constructions, bridge repairs, and industrial maintenance. Its versatility, safety, and durability make it a preferred choice over traditional tube-and-coupler scaffolding systems in many scenarios.
Historical Development of Cuplock Scaffolding
The Cuplock system was first developed in the 1970s to address the limitations of traditional scaffolding methods. Conventional scaffolds often required multiple components, nuts, and bolts, which increased assembly time and labor costs. Cuplock introduced a tool-free locking mechanism that significantly improved efficiency.
Over the decades, innovations in metallurgy, design, and modular engineering have enhanced the Cuplock system. Modern versions are made from galvanized steel or high-strength aluminum, offering improved corrosion resistance and higher load-bearing capacity.

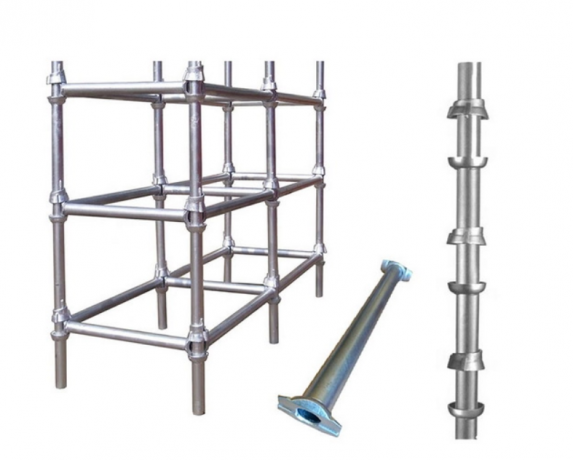

Key Components of Cuplock Scaffolding
Cuplock scaffolding is composed of several interrelated parts, each playing a crucial role in ensuring structural stability and safety.
Standards
These are the vertical poles that form the main framework. They are typically manufactured from high-grade steel and spaced at regular intervals. The standards feature cups welded at various heights, which hold the ledgers and transoms securely in place.
Ledgers
Ledgers are horizontal members connecting the standards. They provide lateral stability and serve as a base for attaching transoms and platforms.
Transoms
Transoms run perpendicular to the ledgers and directly support the working platforms. They distribute load evenly across the structure.
Base Plates
Base plates are placed under the standards to distribute the load and prevent sinking into soft ground. They are essential for ensuring scaffold stability, especially on uneven terrain.
Blade and Cup Lock
The cup-and-blade mechanism is the signature feature of this scaffolding system. Each standard has cups at specific intervals. Ledgers and transoms are inserted into the cups and locked in place by the blade, eliminating the need for separate fasteners.
Additional Accessories
Safety accessories include guardrails, toe boards, staircases, ladders, and adjustable jacks. These enhance worker safety and improve accessibility on multi-level scaffolds.
Advantages of Cuplock Scaffolding
Cuplock scaffolding is celebrated for several key advantages:
1. Rapid Assembly and Disassembly
The unique cup-and-lock system allows for fast erection and dismantling. Workers can connect components by striking them with a hammer, which significantly reduces project timelines compared to traditional scaffolding systems.
2. High Load-Bearing Capacity
Cuplock scaffolding is engineered to support heavy loads, making it suitable for industrial projects and multi-story construction. Each connection point is designed to bear substantial weight without compromising structural integrity.
3. Modularity and Flexibility
The system's modular design enables adaptation to various structures, from rectangular buildings to circular tanks and complex industrial installations. This flexibility allows engineers to customize scaffolding for unique project requirements.
4. Durability and Low Maintenance
Made from galvanized steel, Cuplock scaffolding is resistant to corrosion and environmental wear. This durability ensures a long lifespan with minimal maintenance costs.
5. Enhanced Safety
The self-locking mechanism prevents accidental disassembly. Additional safety features, such as guardrails, provide extra protection for workers at height.
Limitations of Cuplock Scaffolding
Despite its many advantages, Cuplock scaffolding does have some limitations:
1. Component Weight
The steel components are relatively heavy, requiring more labor or mechanical assistance for transportation and assembly.
2. Storage Requirements
Modular components take up significant storage space, which may be challenging for small construction companies.
3. Limited Adjustability
Although versatile, Cuplock may not offer the same fine-level adjustability as Ringlock or Kwikstage scaffolds, potentially restricting its use in highly irregular structures.
4. Training Requirement
Workers must be properly trained to assemble Cuplock scaffolding safely. Misassembly can lead to structural instability.
Cuplock vs. Other Scaffolding Systems
To understand Cuplock scaffolding's position in the industry, it is useful to compare it with other common scaffolding types:
| Feature | Cuplock Scaffolding | Ringlock Scaffolding | Tube & Coupler Scaffolding |
|---|---|---|---|
| Assembly Method | Cup-and-lock | Rosette and wedge pin | Coupler and tube |
| Load-Bearing Capacity | High | Very High | Moderate |
| Flexibility | Moderate | High | High |
| Component Weight | Heavy | Moderate | Moderate |
| Speed of Assembly | Fast | Moderate | Slow |
| Cost | Moderate | Higher | Lower |
| Ideal Applications | Standard construction, multi-story buildings | High-rise, complex structures | Small-scale projects, temporary platforms |
From the table, it's clear that while Cuplock is efficient and reliable, Ringlock scaffolding may be preferred for highly complex or high-rise projects due to superior flexibility and load-bearing capacity.
Applications of Cuplock Scaffolding
Cuplock scaffolding is widely used across multiple sectors:
Construction
Multi-story residential and commercial buildings frequently use Cuplock scaffolding for facades, wall supports, and platform creation.
Industrial Maintenance
Cuplock scaffolds provide access to machinery, tanks, and industrial structures for maintenance and repairs.
Infrastructure Projects
Bridges, tunnels, and highway works often employ Cuplock scaffolding due to its high load-bearing capabilities and stability.
Event Staging
Temporary platforms, exhibition stands, and concert stages benefit from the modularity and quick assembly of Cuplock scaffolding.
Special Applications
Certain projects, such as offshore platforms and heavy industrial plants, rely on Cuplock scaffolding due to its durability under harsh environmental conditions.
Safety Management and Best Practices
Proper safety management is crucial when using Cuplock scaffolding:
-
Regular Inspections: Inspect all components before use to detect any damage or wear.
-
Load Management: Adhere to recommended load limits to prevent structural failure.
-
Worker Training: Ensure all personnel understand the assembly process and safety protocols.
-
Proper Anchoring: Secure scaffolding to the building or structure to prevent tipping.
-
Use of Safety Accessories: Guardrails, toe boards, ladders, and staircases should be employed wherever necessary.
-
Environmental Considerations: Wind and weather conditions must be monitored, especially for high-rise scaffolding.
Case Study: Cuplock in Large Construction Projects
Several high-profile construction projects have successfully implemented Cuplock scaffolding:
-
Commercial Towers in Dubai: High-rise towers used Cuplock scaffolding for both exterior and interior access. The rapid assembly helped meet tight deadlines.
-
Industrial Plant Refurbishment in Germany: Cuplock scaffolds allowed engineers to access complex machinery safely and efficiently.
-
Bridge Maintenance in Australia: Cuplock scaffolding provided stability and adaptability for irregular bridge supports.
These examples demonstrate the system's versatility, efficiency, and reliability in diverse environments.
Maintenance and Longevity
Cuplock scaffolding is designed for long-term use. To maximize lifespan:
-
Store components in dry, ventilated areas to prevent corrosion.
-
Clean after exposure to saltwater or industrial chemicals.
-
Replace damaged parts immediately to maintain safety and integrity.
-
Schedule routine inspections and lubrication of moving components.
Frequently Asked Questions
1. Can Cuplock scaffolding be used for irregular-shaped structures?Yes, the modular system allows customization to fit curves, angles, and unusual layouts.
2. What is the typical lifespan of Cuplock scaffolding?
With proper maintenance, galvanized Cuplock scaffolding can last over 20 years.
3. How does Cuplock compare with traditional tube-and-coupler scaffolding?
Cuplock is faster to assemble, safer due to self-locking, and requires fewer components.
4. Is Cuplock suitable for temporary events?
Absolutely. Its quick assembly and disassembly make it ideal for event staging, exhibition platforms, and temporary stages.
5. How often should inspections be conducted?
Daily inspections are recommended for active construction sites, with comprehensive monthly checks for structural integrity.
Article Summary
Cuplock scaffolding is a versatile, modular system widely used in construction, industrial maintenance, and event staging. Its cup-and-lock mechanism allows rapid assembly, high load capacity, and enhanced safety. Proper training and maintenance ensure durability and optimal performance.
