Beyond Precision: How 5 Axis CNC Machining Is Redefining the Art of Modern Manufacturing

In an era where speed, customization, and accuracy define industrial success, 5 Axis CNC Machining stands as one of the most transformative technologies in modern manufacturing. It's not just a machine; it's a philosophy of precision engineering that merges innovation and adaptability. From aerospace to medical implants, this technology reshapes how designers and engineers turn raw materials into masterpieces of practicality and performance.



Understanding the Concept of 5 Axis CNC Machining

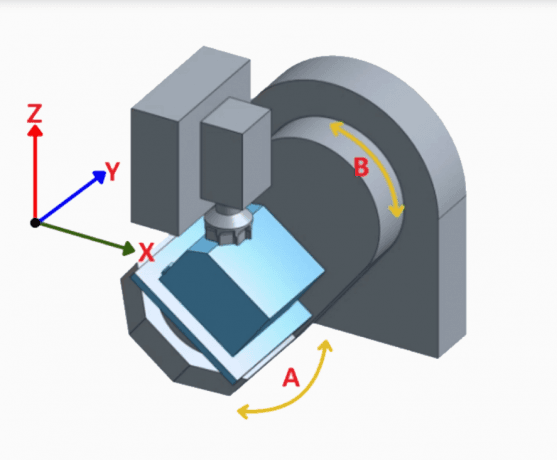

At its core, 5 Axis CNC Machining refers to a manufacturing process where a computer numerically controls cutting tools or workpieces along five different axes simultaneously. Traditional 3-axis machines move in the X, Y, and Z directions, while 5-axis machines add two more rotational movements — usually referred to as A and B axes. This multi-directional motion gives machinists the ability to produce highly complex geometries in a single setup.

In simpler terms, 5-axis machining allows tools to approach a workpiece from virtually any direction. This flexibility eliminates multiple setups, reduces production time, and ensures unparalleled surface finishes.



Why Manufacturers Are Switching to 5 Axis CNC Machining

Manufacturers who once relied heavily on 3-axis CNC machines are now upgrading to 5-axis systems because the manufacturing world demands versatility. The main drivers of this shift include:

• Complex Geometry Mastery: Ability to machine intricate designs impossible for 3-axis systems.

• Reduced Setup Time: One setup instead of several, minimizing human error and downtime.

• Superior Surface Finish: Continuous cutting motion reduces tool marks and delivers aesthetic precision.

• Higher Productivity: Shorter machining time with simultaneous movement and multi-angle cutting.

• Material Savings: Optimized tool paths ensure minimal waste and maximum efficiency.



The Engineering Behind the Fifth Axis

In a 5-axis system, the additional two axes can either rotate the workpiece or tilt the cutting tool itself. Two main configurations exist:

Each configuration caters to specific industrial needs. The trunnion model, for instance, offers tight tolerances and extreme detail accuracy, while the swivel-head type is preferred for machining large components like turbine blades or automotive molds.



Comparing 3 Axis and 5 Axis CNC Machining

The data shows that while 3-axis machines may appear cost-effective at the start, 5-axis machines significantly outperform them over time. Reduced labor, waste, and rework costs make them a long-term investment for industries focused on customization and perfection.



Applications Across Modern Industries

Thanks to its advanced control, 5-axis CNC machining is revolutionizing multiple sectors:

• Aerospace: Producing complex titanium and composite components that demand flawless curvature.

• Automotive: Machining molds, engine housings, and lightweight structural parts for electric vehicles.

• Medical: Crafting implants, surgical instruments, and dental components with personalized precision.

• Energy: Creating turbine blades and heat exchangers resistant to extreme conditions.

• Consumer Electronics: Enabling ultra-smooth casings and micro-component fabrication.

The technology's precision and repeatability make it a favorite in industries where failure tolerance is near zero.



The Procurement Perspective: What Buyers Need to Know

For procurement professionals and business owners, a cutting-edge 5-axis system may seem intimidating in cost and complexity. However, the investment is not just about owning a machine—it's about boosting competitiveness.

Buyers should evaluate:

• Material compatibility: Ensure the machine handles the metals and composites in your product line.

• Automation capabilities: Integration with robotics or tool changers adds speed and accuracy.

• Software support: Advanced CAD/CAM integration is essential for error-free programming.

• Service and training: Reliable technical support ensures long-term value.

A smart purchase focuses on lifecycle benefits rather than just upfront pricing. Efficient maintenance, intuitive control systems, and predictable accuracy ensure consistent profitability.



The Psychological Edge: Why 5 Axis CNC Attracts both Engineers and Clients

From a marketing psychology standpoint, precision equals trust. A customer holding a finely machined part subconsciously associates the brand with quality and innovation. The smoother surface, exact symmetry, and flawless details amplify the perceived value of the product.

For engineers, mastering 5-axis machining satisfies professional pride—a tangible mastery over complexity. For clients, it communicates brand excellence.



Challenges and How the Industry Is Overcoming Them

Despite its advantages, 5-axis machining poses specific challenges:

• Programming Complexity: More axes mean more data, requiring advanced software and skilled operators.

• High Initial Cost: Machines and setup can be expensive, though dynamic ROI mitigates this over time.

• Maintenance: More moving parts demand precision calibration and stable environmental conditions.

The industry is addressing these challenges through AI-powered path optimization, simplified human-machine interfaces, and predictive maintenance technologies. Modern 5-axis machines can even learn from cutting behavior, adjusting speed and pressure dynamically to ensure consistency.



Future Trends in 5 Axis CNC Technology

As AI, robotics, and digital twins integrate into manufacturing, future 5-axis systems are becoming smarter and faster. Enhanced real-time monitoring, vibration control, and virtual simulation now optimize operations before machining even begins.

Emerging trends include:

• Hybrid machining: Combining additive and subtractive manufacturing in one unit.

• Smart calibration systems: Automatic axis correction during operation.

• Cloud-based CNC management: Remote performance monitoring and data-driven analytics.

• Adaptive tooling: Tools that adjust to wear dynamically, extending lifespan.

These innovations promise to shrink production cycles even further while increasing sustainability through reduced waste and energy use.



Conclusion: A Revolution in Every Angle

5 Axis CNC Machining isn't just an engineering advancement—it's an industrial revolution in miniature. It condenses intelligence, artistry, and physics into one platform that's changing how we design and produce the things we rely on every day. As industries continue to demand the impossible, the five-axis machine proves that “impossible” is simply another angle waiting to be cut.



Frequently Asked Questions

1. What materials are best suited for 5 Axis CNC machining?
Metals like titanium, aluminum, stainless steel, and exotic alloys perform exceptionally well. It also works with composites and engineering plastics used in aerospace and medical fields.

2. Is 5 Axis CNC machining cost-effective for small batches?
Yes. While initial costs are high, its minimal setup time and material efficiency make it economically viable for both prototypes and short runs.

3. What industries benefit the most from 5 Axis technology?
Aerospace, automotive, medical, and electronics industries rely heavily on it due to precision and design freedom.

4. How does software impact machining accuracy?
Advanced CAD/CAM software translates design files into tool paths. Better algorithms mean smoother transitions and fewer tool marks, directly impacting surface quality.

5. Can 5 Axis machines handle large parts?
Yes. Especially the swivel-head type can accommodate large parts like turbine housings or car molds, depending on the machine size.

Article Summary

5 Axis CNC Machining combines speed, accuracy, and flexibility to create complex components across industries. By enabling multi-directional cutting and superior finishes, it redefines manufacturing efficiency and quality. This technology is where precision meets innovation.
