Stainless steel welded coiled tubing has become an indispensable component across numerous industries due to its unique combination of strength, flexibility, corrosion resistance, and cost-effectiveness. This article delves deep into the manufacturing processes, material grades, key benefits, and diverse applications of stainless steel welded coiled tubing, providing a thorough understanding for engineers, procurement specialists, and industry professionals.

What is Stainless Steel Welded Coiled Tubing?

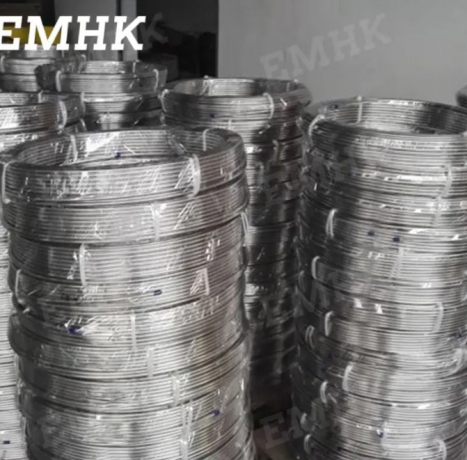

Stainless steel welded coiled tubing is tubing formed by rolling stainless steel strips into tubes and welding the edges to create a continuous length of tubing that is then coiled for ease of handling, transport, and installation. The welding methods commonly used include TIG (Tungsten Inert Gas), high-frequency, and laser welding, which ensure strong, durable seams. After welding, the tubes undergo finishing processes such as weld bead removal and sizing to meet precise dimensional requirements.

The coiled form offers significant advantages in terms of flexibility and space-saving, allowing the tubing to be deployed efficiently in complex or confined environments. The stainless steel alloy composition typically includes iron, chromium, nickel, and sometimes molybdenum, which enhances corrosion resistance and mechanical strength.

Manufacturing Process of Stainless Steel Welded Coiled Tubing

Raw Material Preparation and Forming

The process begins with stainless steel strips cut to specific widths. These strips are then formed into a tubular shape using rollers. The edges are prepared carefully to ensure a high-quality weld, which is critical for maintaining corrosion resistance and structural integrity.

Welding Techniques

Welding seals the edges of the tube, creating a continuous seam. TIG welding is common for its precision and control, but laser and high-frequency welding are also used to achieve smooth, strong welds. Post-weld, the seam is conditioned by removing weld beads through processes like scarfing or sanding to ensure a smooth surface and prevent stress concentrations.

Finishing and Coiling

After welding, the tubing is sized to exact dimensions and cut to length. The finished tube is then coiled, making it easier to transport and install, especially in applications requiring long continuous lengths of tubing without joints.

Material Grades and Specifications

Common Stainless Steel Grades

  • 304 Stainless Steel: Offers excellent corrosion resistance and flexibility, suitable for general-purpose applications.

  • 316 Stainless Steel: Contains molybdenum, providing superior resistance to chlorides and marine environments.

  • Duplex Stainless Steel: Combines high strength with excellent corrosion resistance, ideal for demanding industrial environments.

The choice of grade depends on the application's environmental conditions, such as exposure to chemicals, temperature, and mechanical stress.

Dimensions and Pressure Ratings

Typical outer diameters range from small precision sizes (e.g., 1/16 inch) up to around 3/4 inch or larger, with wall thicknesses varying from ultra-thin to heavy-duty depending on pressure requirements. Pressure ratings depend on the tubing's wall thickness, diameter, and material grade, with thicker walls providing higher pressure resistance.

Advantages of Stainless Steel Welded Coiled Tubing

1. Superior Corrosion Resistance

The chromium content in stainless steel forms a passive oxide layer that protects the tubing from rust and corrosion, even in harsh chemical or marine environments. This resistance extends the tubing's lifespan and reduces maintenance costs.

2. Flexibility and Space Efficiency

The coiled form allows for easy installation in tight or complex spaces, reducing the need for multiple fittings and connections. This flexibility also minimizes potential leak points and simplifies assembly.

3. Cost-Effectiveness

Welded coiled tubing is generally more economical than seamless tubing, especially for applications where extremely high pressure is not a concern. The continuous length reduces installation time and labor costs, and fewer fittings mean fewer potential failure points.

4. High Mechanical Strength and Pressure Handling

Though seamless tubing offers higher strength, welded coiled tubing can withstand considerable mechanical stress and pressure, making it suitable for hydraulic, chemical, and instrumentation applications.

5. Enhanced Safety and Reliability

Fewer manual handling operations and reduced rig-up time improve operational safety. The durable stainless steel alloy ensures reliable performance in critical applications such as oil and gas well control lines and chemical injection systems.

Industrial Applications of Stainless Steel Welded Coiled Tubing

Oil and Gas Industry

  • Control Lines: Transmit hydraulic or pneumatic signals to downhole equipment.

  • Chemical Injection Lines: Deliver corrosion inhibitors and other chemicals.

  • Well Intervention: Used for cleanouts, acidizing, and hydraulic fracturing.

  • Pipeline Maintenance: Cleaning and leak repair operations benefit from coiled tubing's flexibility.

Chemical and Petrochemical Processing

  • Transport of corrosive fluids.

  • Heat exchangers and transfer lines.

  • Sampling systems for contamination-free collection.

Medical and Pharmaceutical

  • Sterile fluid transfer.

  • Surgical instrument components.

  • Clean-in-place (CIP) systems due to hygienic surface properties.

Aerospace and Defense

  • Hydraulic systems requiring high pressure resistance.

  • Fuel transfer lines.

  • Instrumentation and sensing lines.

Food and Beverage Industry

  • Beverage dispensing systems.

  • Processing and sterilization equipment.

  • Sanitary process piping.

HVAC and Refrigeration

  • Heat exchangers.

  • Refrigerant and chilled water lines.

  • Solar thermal systems for heat transfer.

Marine and Renewable Energy

  • Hydraulic and fuel systems on ships.

  • Seawater cooling and desalination.

  • Solar thermal storage tank heat exchangers.

Selecting the Right Stainless Steel Welded Coiled Tubing

Key Considerations

  • Material Grade: Choose based on corrosion resistance and mechanical requirements.

  • Dimensions: Ensure compatibility with system fittings and pressure ratings.

  • Pressure and Temperature Ratings: Must meet operational conditions.

  • Compliance: Verify adherence to industry standards such as ASTM A269, ASTM A213, or ASME SA213.

  • Surface Finish: Important for hygienic or precision applications.

Welding Best Practices for Stainless Steel Tubing

Proper welding techniques and heat control are crucial to maintaining corrosion resistance and mechanical properties. Using low-carbon filler metals and controlling heat input prevents sensitization, which can reduce corrosion resistance. Joint preparation, cleanliness, and proper fit-up ensure high-quality welds free of defects.

Summary

Stainless steel welded coiled tubing offers a versatile, durable, and cost-effective solution for a wide range of industrial applications. Its excellent corrosion resistance, mechanical strength, and flexibility make it ideal for oil and gas, chemical processing, medical, aerospace, and many other sectors. The manufacturing process, involving precise forming and welding techniques, ensures a high-quality product that reduces installation time and maintenance costs. Understanding the material grades, dimensions, and application requirements is essential to selecting the right tubing for your needs.

Frequently Asked Questions

Q1: What distinguishes welded coiled tubing from seamless tubing?

A1: Welded coiled tubing is made by forming and welding strips of stainless steel, which is more cost-effective and flexible, while seamless tubing is drawn from solid billets, offering higher strength and pressure resistance.

Q2: Why is stainless steel preferred for coiled tubing?

A2: Stainless steel provides superior corrosion resistance, mechanical strength, and durability, suitable for harsh environments and critical applications.

Q3: What industries benefit most from stainless steel welded coiled tubing?

A3: Oil and gas, chemical processing, medical, aerospace, food and beverage, HVAC, marine, and renewable energy sectors all widely use this tubing.

Q4: How does coiled tubing reduce installation costs?

A4: Its continuous length reduces the need for multiple fittings and connections, speeding up installation and lowering labor and material costs.

Q5: What are the key factors in selecting the right stainless steel tubing coil?

A5: Consider material grade, dimensions, pressure and temperature ratings, environmental exposure, and compliance with industry standards.

Article Abstract

Stainless steel welded coiled tubing combines strength, corrosion resistance, and flexibility, making it essential in industries like oil and gas, chemical processing, and aerospace. Manufactured by rolling and welding stainless steel strips into continuous coils, it offers cost-effective installation, reduced leak risks, and long service life. This comprehensive guide explores its production, advantages, applications, and selection criteria to help professionals optimize their tubing solutions.
