Comprehensive Guide to Stainless Steel 316L Coiled Tubing: Properties, Manufacturing, Applications, and Benefits

Stainless Steel 316L coiled tubing is a versatile and high-performance material widely used across various industries due to its exceptional corrosion resistance, mechanical strength, and flexibility. This article explores the composition, manufacturing process, physical and mechanical properties, applications, and advantages of 316L stainless steel coiled tubing, providing a detailed understanding for engineers, designers, and industry professionals.

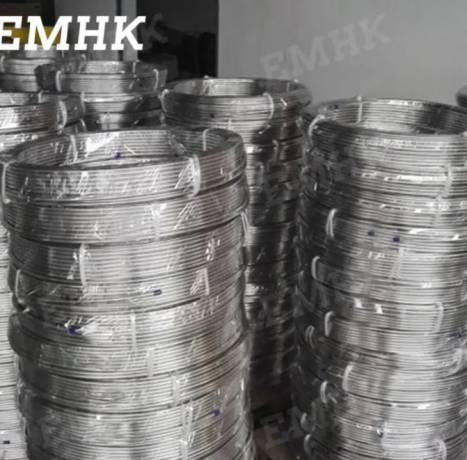

What is Stainless Steel 316L Coiled Tubing?

Stainless Steel 316L is a low-carbon version of 316 stainless steel, known for its superior corrosion resistance, especially against chlorides and other industrial solvents. When formed into coiled tubing, it offers enhanced flexibility and ease of installation compared to straight tubing sections.

Composition and Physical Properties

316L stainless steel typically contains:

• Carbon: ≤ 0.03%

• Chromium: 16.0–18.0%

• Nickel: 10.0–14.0%

• Molybdenum: 2.0–3.0%

• Manganese, Silicon, Phosphorus, Sulfur in trace amounts

This composition grants 316L excellent resistance to pitting and crevice corrosion in chloride environments, making it ideal for marine and chemical applications.

Physical properties include:

• Density: 8.0 g/cm³

• Melting point: 1375–1400°C

• Elastic modulus: 193 GPa

• Thermal conductivity: 14–16 W/m·K

• Yield strength: ≥ 40,000 psi

• Tensile strength: ≥ 70,000 psi

• Maximum hardness: 200 HV

These properties make 316L both strong and durable under various environmental conditions.

Manufacturing Process of 316L Stainless Steel Coiled Tubing

Starting Material and Tube Formation

The manufacturing process begins with a hollow "mother tube," produced by extrusion or gun drilling. This tube undergoes cold drawing, where it is pulled through a series of progressively smaller dies to reduce diameter and wall thickness while increasing length. A mandrel is often inserted inside the tube during drawing to maintain inner diameter and prevent collapse.

Annealing and Heat Treatment

Cold drawing hardens the material, so inter-stage annealing is performed by heating the tubing to temperatures between 1000°C and 1150°C, restoring ductility for further processing. After final drawing, the tubing undergoes pickling in acid baths to remove scale and surface contaminants, followed by passivation to form a protective oxide layer that enhances corrosion resistance.

Surface Finishing and Coiling

Surface finishing processes such as electropolishing, mechanical polishing, and buffing provide a smooth, bright finish. The tubing is then carefully coiled using specialized machines that control tension and speed to avoid kinks or deformation. The coils are cut to specified lengths and deburred for safe handling.

Advantages of Stainless Steel 316L Coiled Tubing

Corrosion Resistance

316L stainless steel offers outstanding resistance to chloride-induced corrosion, making it suitable for harsh environments like seawater exposure, chemical processing, and wastewater treatment. The low carbon content prevents sensitization during welding, maintaining corrosion resistance in welded areas.

Flexibility and Installation Ease

The coiled form allows for long continuous lengths-sometimes exceeding 2300 feet-reducing the need for joints and fittings. This flexibility enables easier transportation and installation, especially in confined or complex spaces, and reduces labor time and costs.

Strength and Temperature Resistance

316L tubing retains strength and ductility across a wide temperature range-from cryogenic temperatures to about 800°C (1472°F). This makes it ideal for applications involving extreme cold (e.g., liquid nitrogen transfer) and high heat (e.g., furnace components).

Reduced Maintenance and Longer Service Life

Fewer joints mean fewer potential leak points, which enhances system integrity and reduces maintenance needs. The material's durability ensures a longer lifespan, providing better return on investment despite a higher initial cost compared to welded tubing.

Versatility in Applications

316L coiled tubing is used in:

• Oil and gas downhole operations (chemical injection, hydraulic fracturing)

• Shipbuilding (hydraulic and cooling systems)

• Desalination plants (feed water and brine lines)

• Wastewater treatment (corrosive fluid handling)

• Chemical processing (heat exchangers, reaction vessels)

• Pharmaceutical and food industries (clean steam and process piping)

• Offshore platforms exposed to harsh marine environments.

Specifications and Standards

316L coiled tubing is manufactured to meet various international standards such as ASTM A269, ASTM A213, ASTM A789, API Spec 5ST, and JIS G4305. Typical outer diameters range from 19.05 mm to 88.9 mm, with wall thicknesses from 1.91 mm to 7.62 mm. Coil lengths can reach up to 8000 meters, with maximum reel weights around 30 tons.

Hydrostatic testing is performed to ensure tubing integrity, with test pressures generally set at 90% of the theoretical burst yield strength or a maximum of 17,500 psi.

Applications in Detail

Oil and Gas Industry

In oil and gas, 316L coiled tubing is used for downhole chemical injection, hydraulic control lines, and well intervention. Its corrosion resistance and mechanical strength ensure reliability in aggressive subterranean environments.

Marine and Shipbuilding

Saltwater corrosion resistance makes 316L tubing ideal for ship hydraulic systems, cooling lines, and fluid transfer systems exposed to marine environments.

Chemical and Pharmaceutical Processing

316L tubing is used in heat exchangers, reaction vessels, and piping systems that handle corrosive chemicals. Its hygienic properties also make it suitable for pharmaceutical process piping and bioreactor components.

Cryogenic and High-Temperature Applications

The tubing maintains ductility at extremely low temperatures, making it suitable for liquid nitrogen and helium transfer. It also withstands oxidation and scaling at elevated temperatures, supporting applications in exhaust systems and heat treatment equipment.

Installation and Handling Tips

• Use appropriate fittings such as Swagelok or DK-Lok compression fittings to ensure leak-free connections.

• Handle coils carefully to avoid kinks or deformation during uncoiling.

• Perform hydrostatic pressure testing after installation to verify system integrity.

• Regularly inspect for signs of corrosion or mechanical damage, especially in harsh environments.

Frequently Asked Questions (FAQs)

Q1: What makes 316L stainless steel better than 304 for coiled tubing?

A1: 316L contains molybdenum, which significantly improves resistance to chlorides and pitting corrosion, making it better suited for marine and chemical environments compared to 304.

Q2: Can 316L coiled tubing be used in high-temperature applications?

A2: Yes, it retains strength and corrosion resistance up to approximately 800°C, suitable for heat exchangers and furnace components.

Q3: How is 316L coiled tubing manufactured to ensure flexibility?

A3: It undergoes cold drawing with mandrel support, annealing between drawing stages, and careful coiling under controlled tension to maintain flexibility without damage.

Q4: What are typical industries using 316L coiled tubing?

A4: Oil and gas, marine, chemical processing, pharmaceuticals, desalination, wastewater treatment, and cryogenics.

Q5: How does coiled tubing reduce installation time and maintenance costs?

A5: By providing long continuous lengths with fewer joints, it reduces leak points and labor-intensive fittings, leading to faster installation and lower maintenance.

Article Summary

Stainless Steel 316L coiled tubing is a high-performance material prized for its corrosion resistance, mechanical strength, and flexibility. Manufactured through precise cold drawing and heat treatment processes, it offers long continuous lengths ideal for complex installations. Its durability and resistance to extreme temperatures make it indispensable in industries such as oil and gas, marine, chemical processing, and pharmaceuticals. The coiled format reduces installation time, maintenance, and leak risks, providing a cost-effective, reliable solution for demanding applications.
