Surface Mount Technology (SMT) nozzles are indispensable components in the automated assembly of printed circuit boards (PCBs). They play a critical role in the pick-and-place process, ensuring precise handling and placement of surface mount devices (SMDs). This article delves deeply into the world of SMT nozzle parts, covering their types, materials, working principles, selection criteria, maintenance, and innovations, providing a detailed resource for engineers, technicians, and enthusiasts in electronics manufacturing.

What Are SMT Nozzle Parts?

SMT nozzle parts are components used in pick-and-place machines that handle the placement of tiny electronic components onto PCBs. These nozzles attach to the machine's head and use vacuum suction or mechanical gripping to pick up components from feeders or trays and place them accurately on the board.

Key Components of SMT Nozzle Parts

  • Nozzle Tip: The part that contacts and holds the component.

  • Nozzle Holder (Head Shaft): Connects the nozzle to the machine and provides mechanical support.

  • Vacuum Channels: Internal pathways that create suction to hold components.

  • Seals and O-rings: Ensure airtight vacuum for reliable pickup.

The nozzle must be compatible with the specific SMT machine model and the component size and shape it handles.

How Does an SMT Nozzle Work?

The SMT nozzle operates as part of the pick-and-place machine's automated system. The process includes:

  • Component Recognition: The machine's vision system identifies the component's position and orientation.

  • Nozzle Alignment: The nozzle moves to the component location, aligning precisely.

  • Vacuum Pickup: A vacuum is applied through the nozzle tip, securely holding the component.

  • Z-Axis Movement: The nozzle lifts the component and moves it to the PCB.

  • Placement: Air pressure or mechanical release places the component on the board.

This sequence repeats rapidly for thousands of components during PCB assembly, requiring nozzles to be highly reliable and precise.

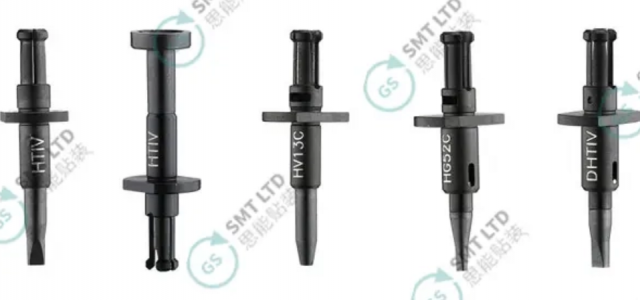

Types of SMT Nozzle Parts

Based on Material

SMT nozzles are made from various materials, each with unique properties affecting durability, cost, and suitability for different components.

  • Plastic Nozzles: Lightweight and inexpensive, suitable for sticky or uneven components but have a shorter lifespan.

  • Tungsten Steel Nozzles: Durable and tough but prone to whitening with wear. Can be restored with oil-based markers.

  • Diamond Steel Nozzles: Extremely durable and never whiten, but costly and less common due to price.

  • Ceramic Nozzles: Resistant to whitening and wear but brittle and prone to breakage.

  • Stainless Steel Nozzles: Hard and long-lasting, with moderate cost and good resistance to deformation.

Based on Shape and Design

Nozzle shape is critical to matching component geometry for effective pickup:

  • Round Hole Nozzles: Common for standard components.

  • Square Hole Nozzles: Used for components with square footprints.

  • V-Groove Nozzles: Designed for elongated or irregularly shaped parts.

  • Flat Suction Points: Used for components with uneven surfaces.

  • Custom Shapes: Tailored nozzles for special components, including grooves or rubber tips to improve grip and release.

Specialized Nozzles

  • Vacuum Nozzles: Use suction to pick components.

  • Gripper Nozzles: Mechanically grip components that cannot be handled by vacuum alone.

  • Special Material Tips: Urethane, POM, and other materials may be used on tips for delicate or unusual components.

Selection Criteria for SMT Nozzle Parts

Choosing the right nozzle is essential for efficient and accurate PCB assembly. Factors to consider include:

Component Size and Shape

Each component size corresponds to a specific nozzle size. For example, 0805 components typically use CN065 nozzles, and 0603 components use CN040 nozzles. Irregular or very small components may require custom nozzles.

Material Compatibility

Sticky or uneven components benefit from plastic or rubber-tipped nozzles, while standard components may use steel or ceramic nozzles for durability.

Machine Compatibility

Nozzles must fit the specific pick-and-place machine model (e.g., Juki, Fuji, Panasonic). Nozzle holders and shafts are also model-specific.

Durability and Cost

Balancing cost with longevity is important. Tungsten steel nozzles offer a good balance, while diamond steel nozzles provide the best durability at a premium price.

Vision System Integration

Nozzles often serve as backgrounds for the machine's optical vision system. Proper nozzle design enhances image contrast and helps the system accurately detect component positions.

Maintenance and Troubleshooting of SMT Nozzle Parts

Regular maintenance extends nozzle life and ensures placement accuracy.

  • Cleaning: Remove dust, solder paste, or residue to maintain suction efficiency.

  • Inspection: Check for wear, whitening, or damage, especially on plastic and tungsten steel nozzles.

  • Replacement: Replace worn or broken nozzles promptly to avoid placement errors.

  • Calibration: Align nozzle centers with vision system coordinates to prevent misplacement.

Using spare nozzles is recommended to minimize downtime during production.

Recent developments focus on improving nozzle materials and designs for higher precision and longer life.

  • Customizable Tips: Using different materials on the nozzle tip for specific applications.

  • Advanced Coatings: Anti-wear and anti-static coatings to reduce damage and improve component handling.

  • Smart Nozzles: Integration of sensors for real-time monitoring of nozzle condition and component pickup success.

Summary

SMT nozzle parts are vital for the high-speed, accurate placement of electronic components in PCB assembly. Understanding the types, materials, and selection criteria helps manufacturers optimize their pick-and-place processes. Proper maintenance and adoption of new technologies further enhance production efficiency and product quality.

Frequently Asked Questions (FAQs)

Q1: What materials are most commonly used for SMT nozzles?

A1: Common materials include plastic, tungsten steel, diamond steel, ceramic, and stainless steel, each chosen based on durability, cost, and component compatibility.

Q2: How do I choose the correct nozzle size for my components?

A2: Nozzle size corresponds to component size; for example, 0805 components use CN065 nozzles, and 0603 components use CN040 nozzles. Custom nozzles may be needed for unusual shapes.

Q3: Can SMT nozzles be reused after wear?

A3: Tungsten steel nozzles can sometimes be restored by painting with an oil-based pen to cover whitening. Other materials like plastic or ceramic typically require replacement when worn or damaged.

Q4: What role does the nozzle play in the machine's vision system?

A4: The nozzle acts as a background to enhance image contrast, helping the vision system accurately detect component positions for precise placement.

Q5: Are there specialized nozzles for components that can't be picked by vacuum?

A5: Yes, gripper nozzles mechanically grip components that vacuum nozzles cannot handle, suitable for complex shapes or materials.

Article Summary


SMT nozzle parts are essential components in automated PCB assembly, responsible for picking and placing surface mount devices with precision. This comprehensive guide covers types, materials, working principles, selection criteria, maintenance, and innovations in SMT nozzles, providing valuable insights for optimizing electronic manufacturing processes.
