Comprehensive Guide to Aluminum Rectangular Tube: Properties, Applications, and Fabrication

Introduction

Aluminum rectangular tubing is a versatile and widely used material in many industries due to its unique combination of strength, lightweight, and corrosion resistance. This guide explores the characteristics, common uses, manufacturing processes, and advantages of aluminum rectangular tubes, helping professionals and enthusiasts make informed decisions when selecting this material for their projects.

What Is Aluminum Rectangular Tube?

Aluminum rectangular tubing is an extruded metal product shaped into a hollow rectangle. It features square corners on both the inside and outside surfaces and is available in various sizes and wall thicknesses. The tubing is made primarily from aluminum alloys such as 6061 and 6063, which provide different mechanical properties suited for specific applications.

Key Features of Aluminum Rectangular Tubing

Lightweight and Strong

One of the most significant advantages of aluminum rectangular tubing is its lightweight nature, which makes it easier to handle and reduces the overall weight of structures without compromising strength. This property is especially beneficial in transportation and construction sectors.

Corrosion Resistance

Aluminum naturally forms a protective oxide layer, making it highly resistant to corrosion. This feature allows aluminum rectangular tubes to perform well in outdoor and marine environments where exposure to moisture and salt is common.

Thermal and Electrical Conductivity

Aluminum has excellent thermal and electrical conductivity, making rectangular tubing useful in applications requiring heat dissipation or electrical grounding.

Easy Fabrication

The tubing can be easily cut, drilled, welded, and formed, allowing for customized fabrication to meet specific design requirements. Its machinability is a key reason for its popularity in manufacturing.

Eco-Friendly and Recyclable

Aluminum is 100% recyclable without losing its properties, making aluminum rectangular tubing an environmentally sustainable choice.

Common Applications of Aluminum Rectangular Tubing

Construction and Structural Frameworks

Aluminum rectangular tubes are widely used in building frameworks, scaffolding, support columns, and architectural features due to their strength-to-weight ratio and corrosion resistance.

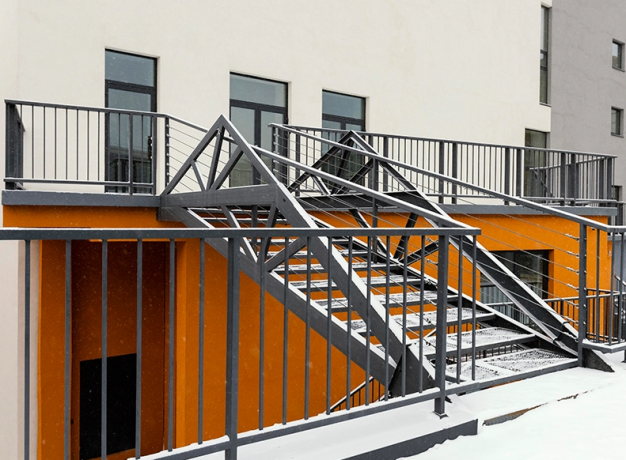

Railings and Fencing

Their durability and aesthetic appeal make aluminum rectangular tubes ideal for railings, fences, gates, and handrails, providing safety and style.

Automotive and Transportation

Used in vehicle frames, trailers, racks, and storage systems, aluminum rectangular tubing helps reduce vehicle weight, improving fuel efficiency and load capacity.

Industrial Equipment

The tubing serves as structural components for conveyor systems, machinery frames, and workbenches, offering stability and ease of assembly.

Recreational Equipment

From bike racks to sports equipment like basketball hoops, aluminum rectangular tubing combines durability with lightweight convenience.

Types of Aluminum Rectangular Tubing

6061 Aluminum Rectangular Tubing

Known for its high strength and weldability, 6061 alloy tubing is used in structural and load-bearing applications. It offers excellent mechanical properties and corrosion resistance.

6063 Aluminum Rectangular Tubing

This alloy is more formable and used primarily for architectural applications such as decorative railings and trim. It has a smoother finish and is easier to anodize.

Manufacturing Process of Aluminum Rectangular Tubing

Step 1: Billet Preparation

Aluminum billets are cut to size and heated to extrusion temperatures ranging from 800 to 925°F depending on the alloy.

Step 2: Extrusion

The heated billet is pushed through a die shaped like the rectangular tube profile. This process forms the hollow rectangular shape with uniform wall thickness.

Step 3: Cooling and Stretching

After extrusion, the tubing is cooled and stretched to straighten and relieve stresses.

Step 4: Finishing

The tubing undergoes finishing processes such as anodizing, powder coating, or polishing to enhance corrosion resistance and aesthetics.

Fabrication and Finishing Techniques

Cutting and Drilling

Aluminum rectangular tubes can be cut to precise lengths and drilled for assembly with other components.

Welding

6061 aluminum tubing is particularly suitable for welding, allowing for strong joints in structural applications.

Surface Treatments

Anodizing enhances corrosion resistance and can add color, while powder coating provides a durable, decorative finish.

Advantages of Aluminum Rectangular Tubing

• High Strength-to-Weight Ratio: Provides structural integrity without excessive weight.

• Corrosion Resistance: Suitable for outdoor and marine environments.

• Cost-Effective: Generally less expensive than steel or titanium alternatives.

• Easy to Work With: Can be cut, welded, and formed with standard tools.

• Environmentally Friendly: Fully recyclable and sustainable.

Specifications to Consider

• Wall Thickness: Affects strength and weight; uniform thickness is critical.

• Dimensions: Width, height, and length tailored to application needs.

• Mechanical Properties: Tensile strength, yield strength, and hardness vary by alloy and temper.

Conclusion

Aluminum rectangular tubing is a highly adaptable material that balances strength, weight, corrosion resistance, and cost. Its broad range of applications in construction, automotive, industrial, and recreational fields makes it a go-to choice for engineers and fabricators. Understanding its properties, manufacturing process, and fabrication options ensures optimal use in any project.

Frequently Asked Questions

Q1: What is the difference between 6061 and 6063 aluminum rectangular tubing?

A1: 6061 is stronger and better for structural applications, while 6063 is more formable and used for architectural purposes.

Q2: Can aluminum rectangular tubing be welded?

A2: Yes, especially 6061 alloy tubing, which is known for good weldability.

Q3: Is aluminum rectangular tubing suitable for outdoor use?

A3: Yes, its natural corrosion resistance makes it ideal for outdoor and marine environments.

Q4: How is aluminum rectangular tubing fabricated?

A4: It can be cut, drilled, welded, bent, and finished with anodizing or powder coating.

Q5: What are common applications of aluminum rectangular tubing?

A5: Construction frameworks, railings, automotive frames, industrial equipment, and recreational gear.

Article Summary

Aluminum rectangular tubing is a lightweight, strong, and corrosion-resistant material widely used in construction, automotive, and industrial applications. Available primarily in 6061 and 6063 alloys, it offers excellent fabrication versatility including welding and finishing options. Its eco-friendly nature and cost-effectiveness make it a popular choice for structural and architectural projects. This comprehensive guide details its features, manufacturing process, applications, and benefits to help you select the right tubing for your needs.
