Comprehensive Guide to Aluminum Flat Bars: Properties, Applications, and Fabrication Techniques

Introduction

Aluminum flat bars are one of the most versatile and widely used metal products in various industries today. Their combination of lightweight, corrosion resistance, and ease of fabrication makes them ideal for numerous applications ranging from construction to consumer goods. This article explores the properties, common alloys, fabrication methods, and practical uses of aluminum flat bars, providing a thorough understanding to engineers, fabricators, and hobbyists alike.

What Are Aluminum Flat Bars?

Definition and Basic Characteristics

Aluminum flat bars, also known as flat stock or rectangular bars, are elongated metal profiles characterized by a flat surface with uniform thickness and width. Produced mainly through extrusion or rolling, these bars have smooth surfaces and sharp, right-angled edges. Their flat shape makes them easy to cut, drill, machine, bend, and weld, which contributes to their popularity across many sectors.

Common Aluminum Alloys Used

Aluminum flat bars are available in various alloys, each offering unique properties:

• 3003 Aluminum: Known for excellent corrosion resistance and formability, widely used in architectural and building applications.

• 5052 Aluminum: Offers good strength and fatigue resistance, suitable for electrical and marine environments.

• 6061 Aluminum: A popular structural alloy with good mechanical properties and corrosion resistance, often used in transportation and structural components.

• 7075 Aluminum: High-strength alloy favored in aerospace, military, and high-performance applications due to its superior tensile strength.

Key Properties of Aluminum Flat Bars

Lightweight and Strength

Aluminum flat bars are significantly lighter than steel, typically about one-third the weight, which makes them ideal for applications where weight reduction is critical without compromising strength.

Corrosion Resistance

Aluminum naturally forms a thin oxide layer that protects it from corrosion, making flat bars suitable for outdoor and marine environments. This property extends the service life of structures and components fabricated from aluminum.

Thermal and Electrical Conductivity

Aluminum has excellent thermal and electrical conductivity, making flat bars useful in heat exchangers, electrical busbars, and other components requiring efficient heat or current transfer.

Machinability and Fabrication

The malleability and ductility of aluminum flat bars allow them to be easily cut, drilled, bent, and welded. This ease of fabrication supports custom designs and quick modifications during manufacturing or repair.

Applications of Aluminum Flat Bars

Structural and Architectural Uses

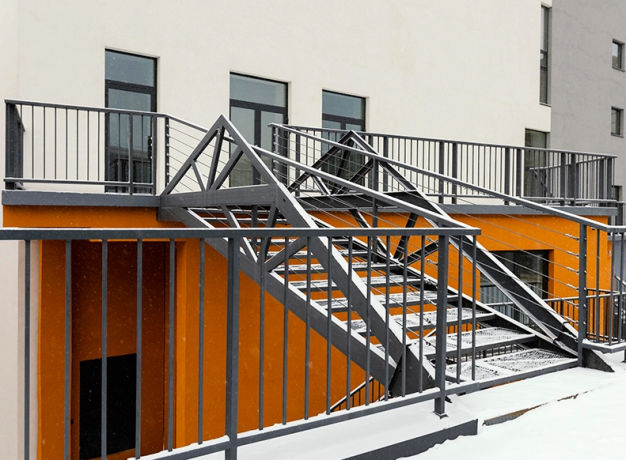

Aluminum flat bars are extensively used in construction for frameworks, braces, ladders, gates, ducts, and vents. Their flat surface and strength make them ideal for supporting structures and architectural features such as window and door frames. They can be formed to fit existing structures for reinforcement or replacement purposes.

Transportation Industry

In automotive and rail industries, aluminum flat bars contribute to lightweight frames and components, enhancing fuel efficiency and load capacity. For example, train car frames made from aluminum flat bars are lighter and have longer service lives compared to steel frames.

Consumer Goods and Interior Design

Flat bars are used in manufacturing electronics casings, outdoor furniture, kitchen appliances, and modern interior décor. Their polished appearance and durability make them popular for stylish and functional household items.

Electrical and Industrial Applications

Due to their conductivity, aluminum flat bars are used in electrical busbars and conductors. They also find roles in machinery parts, heat exchangers, and chemical processing equipment.

Fabrication Techniques for Aluminum Flat Bars

Cutting and Machining

Aluminum flat bars can be cut using circular saws, band saws, or hacksaws with appropriate blades. Machining processes such as milling and drilling are straightforward due to aluminum's softness relative to steel.

Bending and Forming

Flat bars can be bent using manual or hydraulic brakes, bending dies, or clamps. For sharp bends without cracking, annealing (heat treatment) may be necessary to soften the metal temporarily.

Welding

Proper welding techniques and equipment allow aluminum flat bars to be joined securely. TIG and MIG welding are commonly used, but care must be taken to avoid contamination and ensure strong welds.

Choosing the Right Aluminum Flat Bar

Consider Alloy and Grade

Selecting the appropriate alloy depends on the application requirements for strength, corrosion resistance, and machinability. For structural uses, 6061 and 7075 are preferred, while 3003 and 5052 are better for architectural and decorative purposes.

Size and Thickness

Flat bars come in various widths and thicknesses, typically ranging from a few millimeters to several centimeters. The choice depends on load requirements and fabrication constraints.

Surface Finish

Options include mill finish, polished, brushed, or anodized surfaces. Anodizing enhances corrosion resistance and aesthetic appeal, which is important for visible architectural elements.

Maintenance and Longevity

Aluminum flat bars require minimal maintenance due to their corrosion resistance. Regular cleaning and inspection can prolong their lifespan, especially in harsh environments. Protective coatings or anodizing can further improve durability.

Conclusion

Aluminum flat bars combine strength, light weight, corrosion resistance, and ease of fabrication, making them indispensable in many industries. Understanding their properties, alloys, applications, and fabrication methods allows users to maximize their benefits and select the right product for any project.

Frequently Asked Questions

Q1: What is the difference between aluminum flat bars and aluminum flat strips?

A1: Aluminum flat bars are generally thicker and used for structural applications, while flat strips are thinner and often used for decorative or light-duty purposes.

Q2: Can aluminum flat bars be welded to steel?

A2: Direct welding of aluminum to steel is challenging due to different melting points and properties. Specialized techniques like explosion welding or using transition materials are required.

Q3: How do I prevent aluminum flat bars from corroding?

A3: Although aluminum is corrosion-resistant, applying anodized coatings or regular cleaning can enhance protection, especially in marine or industrial environments.

Q4: Are aluminum flat bars recyclable?

A4: Yes, aluminum is 100% recyclable without loss of properties, making flat bars an environmentally friendly choice.

Q5: What tools are best for cutting aluminum flat bars?

A5: Circular saws with carbide-tipped blades, band saws, or hacksaws with fine-toothed blades are suitable for cutting aluminum flat bars cleanly and efficiently.

Article Summary

Aluminum flat bars are versatile metal profiles widely used in construction, transportation, consumer goods, and electrical applications due to their lightweight, corrosion resistance, and ease of fabrication. Available in various alloys and finishes, these bars can be cut, bent, welded, and machined to suit diverse industrial and architectural needs. This comprehensive guide covers their properties, common uses, fabrication methods, and maintenance tips, helping readers select and utilize aluminum flat bars effectively for their projects.
