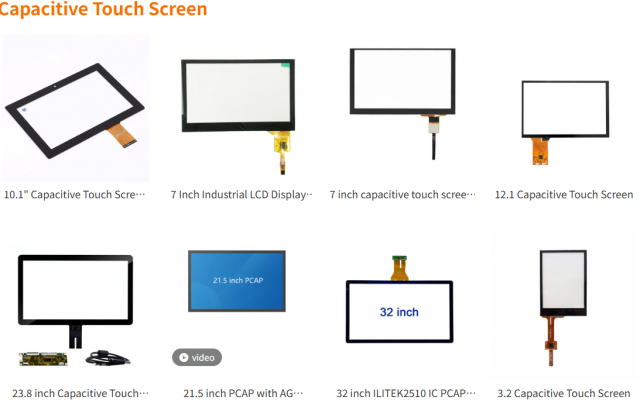

Capacitive touch screen technology has become the heartbeat of modern digital interaction. Whether you are tapping through a smartphone interface, navigating a smart home display, or operating a medical diagnostic device, the smooth, instant, finger-responsive experience comes from capacitive sensing technology. This article provides a comprehensive, deeply technical yet accessible exploration of how capacitive touch screens work, why they dominate the market, how they compare to other touch technologies, and what manufacturers, engineers, and buyers should understand before selection.
Understanding the Core Principle of Capacitive Touch Screens
Capacitive touch screens operate on the principle of electrical charge variations across a conductive surface. Instead of relying on pressure, they detect small changes in capacitance created when a human finger approaches or touches the screen. Because the body can store and transfer electrical charge, it becomes part of the circuit, enabling highly sensitive input.
How Capacitive Sensing Works
At the foundation of capacitive sensing lies an electrostatic field distributed across the panel. The screen consists of transparent conductive layers, often made from Indium Tin Oxide or other metal mesh alternatives. When a user touches or closely approaches the surface, the electrostatic field shifts, and the controller analyzes this disturbance to determine the touch location.
This allows contactless or ultra-light touch operation, which is significantly more comfortable and intuitive than pressure-based methods.
The Two Main Types of Capacitive Touch Screens
Most capacitive touch screens fall into two categories:
Surface Capacitive Screens
These screens apply a uniform charge across the surface. When touched, a portion of the current flows to the finger or conductive stylus, and sensors detect the location based on current flow reduction.
Projected Capacitive Screens (PCAP)
Projected capacitive technology has become the industry standard due to improved accuracy, multi-touch capability, and durability. In PCAP displays, conductive layers form a grid of electrodes, allowing precise position calculation even with gestures like pinch, zoom, swipe, and rotation.
Why Capacitive Touch Screens Outperform Other Technologies
Capacitive screens have become the default in consumer electronics, industrial equipment, automotive smart dashboards, and medical interfaces. Their dominance is not accidental but the result of highly refined advantages across performance, durability, clarity, and user experience.
Superior Touch Sensitivity and Responsiveness
Capacitive touch screens excel in responsiveness. They detect even the faintest touch, making interactions feel instantaneous. This is crucial for applications where efficiency and user comfort matter, such as mobile devices and on-the-go interfaces.
High Optical Transparency
Since capacitive screens do not require additional layers that resist pressure, they maintain a high clarity level. Whether used on tablets or sophisticated industrial displays, their transparency enhances color vibrancy and improves readability in bright environments.
Durability and Longevity
No moving mechanical parts or pressure layers means lower wear and tear. PCAP screens are known for surviving millions of touch cycles without performance degradation, making them a preferred choice for kiosks, ATMs, ticketing machines, and factory control panels.
Comparison: Capacitive Touch vs. Resistive Touch
Choosing between capacitive and resistive touch remains one of the most frequent decisions for buyers and developers. The table below highlights key differences.
| Feature | Capacitive Touch Screen | Resistive Touch Screen |
|---|---|---|
| Activation Method | Finger or conductive stylus | Any object with pressure |
| Multi-touch Support | Yes | Limited |
| Transparency | High | Moderate |
| Durability | Excellent | Good but prone to wear |
| Sensitivity | Very high | Lower, requires pressure |
| Cost | Higher | Lower |
| Glove Operation | Specialized supported | Universal |
| Ideal Applications | Smartphones, kiosks, medical devices, industrial HMI | Budget devices, POS machines, older industrial systems |
This comparison illustrates why capacitive technology dominates high-end and mid-range markets, whereas resistive touch screens remain relevant mainly for low-budget or specialized environments requiring non-finger input.
The Technology Behind Multi-Touch Capability
One of the most transformative advancements in capacitive touch screens is multi-touch sensing. This feature enables gestures and simultaneous input detection.
Matrix Electrode Design
Projected capacitive screens use intersecting rows and columns of micro-electrodes. Each intersection acts as an individual sensing point, allowing the controller to detect multiple positions simultaneously.
Gesture Recognition Algorithms
Advanced algorithms process variations in capacitance to identify gestures. This enables actions like:
-
Two-finger zooming
-
Multi-finger rotation
-
High-speed swiping
-
Simultaneous typing on virtual keyboards
These interactions enhance user satisfaction and allow software developers to design more intuitive digital experiences.
Materials Used in Capacitive Touch Screens
The most common transparent conductive material is Indium Tin Oxide. However, modern technologies are adopting alternatives due to cost, durability, and performance requirements.
ITO: The Market Standard
ITO offers high transparency and consistent performance. It remains the most widely used material for premium touch screens.
Metal Mesh Conductors
Metal mesh is gaining traction in large-format screens due to its flexibility and improved conductivity. It reduces resistance, which enhances sensitivity in bigger panels like digital signage and interactive whiteboards.
Silver Nanowires
For flexible and foldable displays, silver nanowires provide the necessary bendability while retaining conductivity. They represent the future of curved screens and wearable technology.
Applications Across Industries
Capacitive touch screens now serve industries far beyond consumer electronics.
Industrial Automation
Human-machine interfaces in manufacturing depend on rugged and responsive PCAP screens. These screens withstand exposure to dust, oils, moisture, and external vibrations.
Healthcare
Medical displays require precision, hygiene, and long-term durability. Capacitive touch panels enable responsiveness even in sterilized environments when paired with special medical-grade gloves.
Automotive Displays
From central infotainment panels to dashboard touch strips, capacitive screens help create sleek, minimalistic vehicle interiors.
Smart Home and IoT Devices
Everything from smart thermostats to connected appliances uses capacitive touch to enhance control accuracy and aesthetics.
Retail and Public Interactive Systems
Interactive kiosks, digital directories, and self-service machines rely on PCAP technology for high usage endurance and intuitive operation.
Challenges and Considerations When Using Capacitive Touch Screens
While capacitive technology is powerful, it also brings specific challenges that designers and buyers should understand.
Glove Compatibility
Standard capacitive screens struggle with glove input because gloves do not transfer electrical charge. Specialized solutions, such as glove-friendly firmware and thicker electrodes, help overcome this issue.
Moisture Sensitivity
Water on the surface may cause false touches. Industrial and outdoor capacitive designs compensate through advanced filtering algorithms and water-resistant overlays.
Cost
Capacitive technology is more expensive than resistive alternatives. For budget-sensitive projects, designers must balance performance with affordability.
How to Choose the Right Capacitive Touch Screen
Selecting the correct panel requires evaluating various factors beyond simple size and cost.
Environmental Conditions
Consider whether the screen will face:
-
Outdoor sunlight
-
Rain or moisture
-
Extreme temperatures
-
Chemical exposure
This determines the type of protective coatings and controller tuning needed.
Touch Controller IC
The controller determines accuracy, latency, and multi-touch performance. High-end ICs allow palm rejection, glove mode, hover detection, and noise immunity.
Cover Glass Thickness
Thicker glass improves durability but may reduce sensitivity unless compensated by powerful sensing technology. Designers must balance ruggedness with responsiveness.
Interface Compatibility
Modern controllers typically support USB, I²C, and RS232 interfaces. Compatibility with the host system is essential for seamless integration.
The Future of Capacitive Touch Technology
Capacitive touch screens continue to evolve with innovations aimed at flexibility, transparency, accuracy, and AI-driven interactions.
Flexible and Foldable Displays
As consumer electronics shift toward foldable smartphones, metal-mesh and nanowire technologies are unlocking new panel designs.
AI-Enhanced Touch Recognition
Machine-learning algorithms will allow screens to adapt to user behavior, differentiate between touch patterns, and filter out noise more intelligently.
In-Cell and On-Cell Integration
Integrating touch sensors directly into the display module reduces thickness, improves brightness, and lowers power consumption.
Hybrid Touch Systems
Future devices may combine capacitive sensing with optical or ultrasonic technologies to achieve even higher precision and non-contact control.
Frequently Asked Questions
1. What is a capacitive touch screen?
A capacitive touch screen detects touch input through changes in electrical capacitance caused by a user's finger or conductive object.
2. What is the difference between capacitive and resistive touch?
Capacitive screens use electrical charge and support multi-touch, while resistive screens rely on pressure and usually lack multi-touch support.
3. Can capacitive touch screens work with gloves?
Standard designs do not support gloves, but specialized controllers and glove-compatible options are available.
4. Why are capacitive screens more expensive?
They use advanced sensing layers, transparent conductive materials, and high-precision controllers, which increase material and manufacturing costs.
5. Are capacitive touch screens suitable for industrial use?
Yes. Industrial-grade capacitive screens offer ruggedization, waterproofing, and advanced filtering that make them ideal for demanding environments.
Summary
Capacitive touch screens power today's interactive devices with high sensitivity, clarity, and durability. This article explores their working principles, advantages, materials, industry applications, comparison with resistive screens, selection tips, and future innovations.
