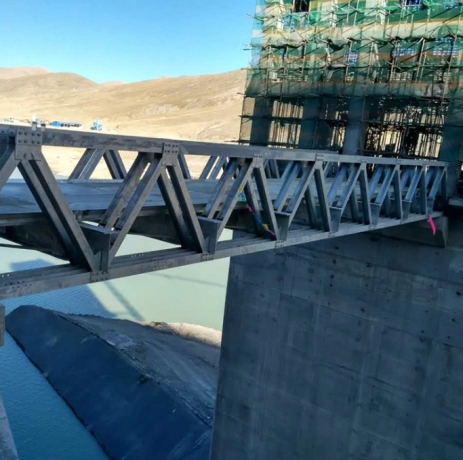

Arch Bridge Construction: Principles, Methods, and Modern Innovations

Arch bridges are one of the oldest and most enduring types of bridge construction, known for their elegant curved design and remarkable strength. This article explores the detailed process of arch bridge construction, the materials used, structural principles, types of arches, advantages and disadvantages, and modern techniques enhancing their performance. Whether built from stone, concrete, or steel, arch bridges remain a vital engineering solution for spanning rivers, valleys, and other obstacles.

Understanding Arch Bridges

What is an Arch Bridge?

An arch bridge is a structure where the main load-bearing element is a curved arch. The arch shape naturally transfers the weight of the bridge and its loads into horizontal thrusts at the abutments or supports at each end. This compression force makes arch bridges highly stable and capable of supporting heavy loads with relatively less material compared to beam bridges.

Structural Mechanics of Arch Bridges

The key to an arch bridge's strength lies in its ability to convert vertical loads into compressive forces that travel along the curve of the arch. This compression is then transferred to the abutments or piers, which must be strong enough to resist the horizontal thrust. The arch itself experiences minimal bending, which allows the use of materials like stone or concrete that are strong in compression but weak in tension.

Materials Used in Arch Bridge Construction

Traditional Materials

• Stone and Masonry: Historically, arch bridges were built using stone and masonry due to their excellent compressive strength. The Romans perfected the semicircular stone arch, many examples of which still stand today.

• Concrete: Concrete, especially reinforced concrete, is widely used in modern arch bridges. It combines compressive strength with tensile reinforcement from steel rebars, allowing for more slender and longer spans.

• Steel: Steel arches are lighter and can handle tension forces, enabling longer spans and more flexible designs.

Modern Materials and Techniques

Modern arch bridges often use reinforced concrete or prestressed concrete, sometimes combined with steel. Precast concrete elements can be fabricated off-site and assembled on-site, speeding up construction and improving quality control. Steel arches may be built using cantilevering methods, where each side is constructed outwards until they meet in the middle, forming a self-supporting arch.

Construction Process of Arch Bridges

Foundation and Abutments

The construction begins with preparing strong foundations and abutments capable of resisting the horizontal thrust generated by the arch. If the bridge crosses a watercourse, the water is diverted, and the riverbed is excavated to create a firm footing, often using stone or concrete.

Erecting Falsework or Centering

Falsework, or temporary support structures, are built to hold the arch during construction. This is typically made from timber or metal frameworks shaped to the arch's curve. For multi-arch bridges, falsework must support all arches simultaneously or use very wide piers to handle the thrust between arches.

Building the Arch Barrel

The arch is constructed over the falsework, layer by layer, often using masonry or concrete. Once the arch barrel is complete, spandrel walls are built on top of the arch to contain infill material, which adds weight and stability to the structure.

Removing Falsework and Completing the Deck

After the arch has gained sufficient strength, the falsework is removed. The deck is then constructed on top of the arch, which may include paving and parapet walls for safety.

Modern Construction Innovations

In steel arch bridges, cantilevering is common, where sections are built out from each side and supported by cables until the arch is closed. Hydraulic jacks and hinges may be used to control the positioning and lowering of arch sections during assembly.

Types of Arch Bridges

Semicircular Arch

The semicircular arch is the classic Roman design, strong in compression but requiring wide piers and solid foundations due to significant horizontal thrust.

Parabolic Arch

The parabolic arch is optimal for pure compression, distributing load evenly and minimizing bending. It is often used in modern bridges for its efficiency.

Elliptical or Oval Arch

Elliptical arches rise quickly and then level out, providing extra clearance while requiring some vertical and horizontal support. They are common in railway footbridges.

Advantages and Disadvantages of Arch Bridges

Advantages

• Excellent load distribution through compression

• Durable and long-lasting, especially stone and concrete arches

• Aesthetic appeal and architectural elegance

• Suitable for spanning deep valleys and waterways

Disadvantages

• Require precise construction; small errors can compromise stability

• More materials and time-consuming to build compared to beam bridges

• Need strong abutments to resist horizontal thrust

• Maintenance can be higher, especially with natural materials prone to weathering

Summary

Arch bridges combine ancient engineering principles with modern materials and techniques to create structures that are both beautiful and strong. Their construction involves careful planning of foundations, temporary supports, and the arch itself, with attention to the forces involved. Advances in materials like reinforced concrete and steel have expanded the possibilities for arch bridge design, allowing longer spans and faster construction while maintaining the arch's inherent strength and elegance.

Frequently Asked Questions (FAQs)

Q1: What is the main structural principle behind an arch bridge?

A1: Arch bridges transfer vertical loads into compressive forces along the curved arch, which are then resisted by the abutments at each end.

Q2: Why are falsework or centering structures necessary in arch bridge construction?

A2: Falsework supports the arch during construction until it becomes self-supporting, preventing collapse during the building process.

Q3: What materials are commonly used in modern arch bridges?

A3: Reinforced concrete, precast concrete, steel, and sometimes laminated wood are commonly used for their strength and flexibility.

Q4: What are the differences between semicircular and parabolic arches?

A4: Semicircular arches are traditional and strong in compression but exert more horizontal thrust, while parabolic arches distribute load more evenly and minimize bending forces.

Q5: What are some challenges in arch bridge construction?

A5: Challenges include precise alignment of the arch, strong foundation requirements, longer construction time, and higher costs compared to simpler bridge types.

Article Summary

Arch bridge construction is a blend of ancient design and modern engineering, utilizing materials like stone, concrete, and steel to create strong, durable structures. The process involves building strong abutments, erecting temporary falsework, constructing the arch barrel, and completing the deck. Different arch shapes-semicircular, parabolic, elliptical-offer various structural advantages. Despite requiring precise construction and more materials, arch bridges remain a popular choice for their strength, aesthetic appeal, and ability to span challenging terrains.
