Aluminum Sliding Window Installation: A Comprehensive Step-by-Step Guide

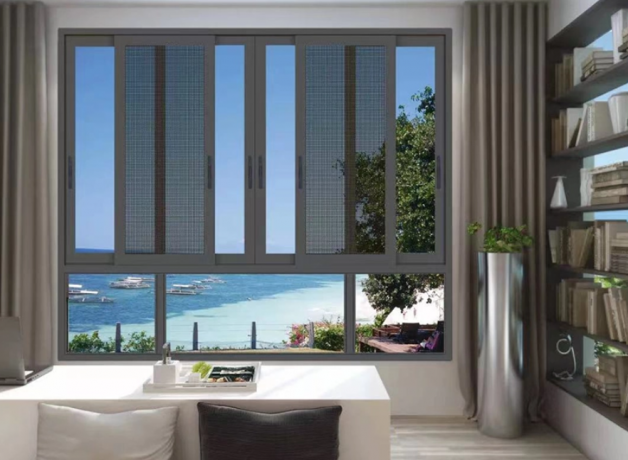

Aluminum sliding windows are a popular choice for both residential and commercial buildings due to their durability, low maintenance, and sleek modern appearance. Installing these windows correctly is crucial to ensure optimal performance, weather resistance, and longevity. This detailed guide will walk you through the entire process of aluminum sliding window installation, covering preparation, tools, step-by-step instructions, and tips to avoid common pitfalls.

Why Choose Aluminum Sliding Windows?

Aluminum sliding windows offer several advantages:

• Durability: Aluminum frames resist corrosion and withstand harsh weather conditions.

• Low Maintenance: Unlike wood, aluminum does not warp or require frequent painting.

• Smooth Operation: Sliding mechanisms allow easy opening and closing.

• Aesthetic Appeal: Slim frames maximize glass area for better views and natural light.

• Energy Efficiency: Modern aluminum windows can be fitted with double glazing and thermal breaks.

Tools and Materials Needed for Installation

Before starting the installation, gather the following tools and materials:

• Spirit level

• Tape measure

• Drill with appropriate bits

• Hammer and chisel

• Screwdrivers

• Window packers (plastic or timber wedges)

• Fixing screws (stainless steel or galvanized)

• Flashing tape or metal flashing

• Silicone sealant

• Safety gear (gloves, goggles)

• Set square

• Utility knife

Having these ready will streamline the process and ensure safety and precision.

Preparation Before Installation

Measuring the Window Opening

Accurate measurement of the window opening is critical. The aluminum sliding window should fit snugly but allow for a small clearance (about 4-10 mm) on each side for adjustment and insulation. Use a laser level or water level to check that the opening is square and level. Uneven or oversized openings can cause operational issues like stiff sliding or poor sealing.

Inspecting the Wall Frame

Check the condition of the wall or frame where the window will be installed. The surface should be clean, dry, and structurally sound. If the cement or timber reveal is uneven, use packers or shims to level it. This prevents misalignment and ensures the window operates smoothly.

Step-by-Step Installation Process

Step 1: Level and Prepare the Window Sill

Start by leveling the window sill using packers. Place a 5mm packer at one end and work along the sill, adding more packers until the surface is perfectly level. This foundation supports the window frame evenly and prevents stress points.

Step 2: Apply Flashing to Prevent Water Ingress

Install flashing tape or metal flashing on the outside of the opening to create a waterproof barrier. The sill flashing should extend at least 150 mm beyond the window edges on both sides. The jamb flashing should overlap the sill flashing and extend upwards at least 150 mm above the window top. Proper flashing is essential to prevent leaks, especially in exposed or high-wind areas.

Step 3: Position the Aluminum Sliding Window Frame

With the help of another person, lift the aluminum window frame and place it into the prepared opening. Use packers to hold it against the levelled sill and ensure it is flush with the inside wall lining. Use a spirit level and set square to check that the frame is plumb, level, and square.

Step 4: Secure the Window Frame

Pre-drill holes through the window frame into the wall reveal or studs. Typically, three holes on each side are sufficient. Use stainless steel or galvanized screws to fix the frame securely. Continue to check for level and plumb as you tighten the screws to avoid distortion.

Step 5: Install the Sliding Panels and Screens

Once the frame is fixed, install the sliding glass panels and any mosquito screens. Insert the fixed panel first, followed by the sliding panel. Adjust the rollers on the sliding panel to ensure smooth operation and proper alignment with the fixed panel. Test the sliding action and locking mechanism to confirm everything works correctly.

Step 6: Seal and Finish the Installation

Apply silicone sealant around the perimeter of the window frame on both the interior and exterior sides to seal gaps and improve weather resistance. Install any head flashing or cladding as necessary to complete the waterproofing and aesthetic finish.

Tips for a Successful Installation

• Always double-check measurements before ordering and installing the window.

• Use corrosion-resistant fixings to extend the lifespan of the installation.

• Avoid lifting the entire window frame alone; use helpers to prevent damage.

• Adjust rollers carefully to balance ease of sliding and security.

• Regularly check levels and plumb throughout the installation process.

• Use appropriate flashing and sealants to prevent water leaks.

• Allow for thermal expansion by not overtightening screws.

Common Challenges and How to Overcome Them

Uneven Wall Openings

If the wall opening is not level or square, use packers and shims to create a flat, square surface. Avoid forcing the window frame into an uneven opening, as this can cause operational issues.

Window Stiffness After Installation

This usually results from misalignment or lack of proper leveling. Adjust the rollers on the sliding panel and ensure the frame is plumb and square.

Water Leakage

Improper flashing or sealing is the primary cause. Ensure flashing overlaps correctly and seal all gaps with high-quality silicone.

Maintenance Tips for Aluminum Sliding Windows

• Clean tracks regularly to prevent dirt buildup that can hinder sliding.

• Lubricate rollers and tracks annually with a silicone-based lubricant.

• Inspect seals and weather stripping periodically and replace if damaged.

• Clean aluminum frames with mild detergent and water to maintain appearance.

Frequently Asked Questions (FAQs)

Q1: How long does it typically take to install an aluminum sliding window?

A1: Installation usually takes 1 to 2 hours for a standard-sized window when properly prepared and with the right tools.

Q2: Can I install an aluminum sliding window myself?

A2: Yes, with basic DIY skills and the right tools, many homeowners can install aluminum sliding windows following detailed guides.

Q3: What is the best way to ensure the window is level during installation?

A3: Use a spirit level and packers under the sill and sides of the frame. Double-check by rotating the level 180 degrees for accuracy.

Q4: How do I prevent water leaks around the window?

A4: Properly install flashing tape around the opening and seal all gaps with silicone. Ensure flashing overlaps correctly on sill and jambs.

Q5: What maintenance is required for aluminum sliding windows?

A5: Regular cleaning of tracks, lubrication of rollers, and inspection of seals and weather stripping help keep windows functioning smoothly.

Article Summary

This comprehensive guide on aluminum sliding window installation covers everything from preparation and tools to step-by-step instructions and troubleshooting tips. Proper measurement, leveling, flashing, and sealing are key to a successful installation that ensures durability, smooth operation, and weather resistance. With the right approach, aluminum sliding windows can be a low-maintenance, attractive addition to any building.
