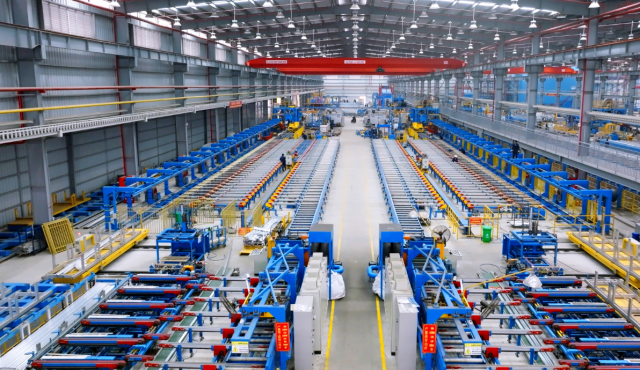

Aluminum extrusion is a critical manufacturing process used to create complex cross-sectional profiles with high precision and excellent mechanical properties. Optimizing this process is essential for improving product quality, increasing production efficiency, reducing waste, and lowering costs. This comprehensive article explores key strategies and technological advancements in aluminum extrusion process optimization, covering billet preparation, extrusion techniques, temperature control, speed management, and post-extrusion treatments.

Understanding Aluminum Extrusion

Aluminum extrusion involves forcing heated aluminum billets through a shaped die to produce profiles with specific cross-sections. The process is widely used in automotive, aerospace, construction, and electronics industries due to aluminum's lightweight, corrosion resistance, and strength.

Types of Aluminum Extrusion Techniques

  • Direct Extrusion: The most common method where the billet and ram move in the same direction, pushing the aluminum through the die. This method generates high pressure and is suitable for a wide range of profiles.

  • Indirect Extrusion: The die remains stationary while the billet and container move together. This reduces friction, improves heat control, and results in better grain structure and mechanical properties.

Both techniques require precise control of process parameters to ensure optimal results.

Key Factors in Aluminum Extrusion Process Optimization

Billet Heating and Temperature Control

Proper billet heating is foundational for extrusion quality. The billet must be heated to a temperature that allows plastic deformation without causing defects like cracks or surface blemishes.

  • For 6063 aluminum alloy, billet heating temperatures typically range between 430°C and 520°C depending on whether the billet is homogenized.

  • Rapid heating reduces precipitation of strengthening phases like Mg2Si, preserving mechanical properties.

  • The extrusion temperature affects product quality, die life, energy consumption, and extrusion speed. It must be dynamically adjusted during the process to prevent defects caused by overheating or underheating.

Extrusion Speed Management

Extrusion speed directly influences production efficiency and product quality.

  • Increasing speed raises the temperature in the deformation zone, which can lead to cracks if not controlled.

  • Speeds should be gradually reduced as the process progresses to maintain product integrity.

  • Cooling methods such as nitrogen cooling can reduce oxidation and improve surface finish, enabling higher speeds.

  • Advanced processes like CADEX optimize extrusion speed and force in a closed-loop system to maximize throughput without compromising quality.

Quenching and Heat Treatment

Post-extrusion quenching rapidly cools the profile to preserve dissolved strengthening phases and improve mechanical properties.

  • The cooling rate is critical; faster quenching generally increases strength.

  • Heat treatment such as aging at 180-190°C for several hours enhances mechanical properties but may reduce production efficiency.

  • Proper quenching prevents precipitation of phases that weaken the material.

Extrusion Ratio and Die Design

  • The extrusion ratio (cross-sectional area of billet to profile) affects the mechanical work required.

  • Higher ratios demand more pressure and precise control to avoid defects.

  • Multi-hole dies can improve yield by reducing extrusion pressure and increasing output compared to single-hole dies.

Process Steps and Optimization Strategies

Step 1: Billet Preparation and Heating

  • Use homogenized billets with controlled heating to minimize precipitation.

  • Monitor temperature precisely using advanced pyrometers tailored for aluminum's emissivity.

Step 2: Extrusion Press Operation

  • Maintain a balance between extrusion speed, temperature, and pressure.

  • Employ dynamic temperature control to avoid overheating and surface defects.

  • Use lubrication and cooling to reduce friction and extend die life.

Step 3: Quenching and Cooling

  • Implement uniform quenching methods such as water baths or fans.

  • Control cooling rates to optimize mechanical strength without inducing residual stresses.

Step 4: Stretching and Straightening

  • Correct profile distortions by stretching to achieve dimensional accuracy.

  • This step ensures profiles meet tight tolerances and reduces scrap.

Step 5: Secondary Operations

  • Conduct heat treatment to achieve desired temper (e.g., T5 or T6).

  • Perform fabrication and surface finishing to enhance corrosion resistance and aesthetics.

Technological Innovations in Aluminum Extrusion Optimization

Real-Time Temperature Monitoring

Modern pyrometers use specific algorithms to measure temperature accurately at multiple points during extrusion, enabling:

  • Increased extrusion speed by up to 20% without defects.

  • Reduction of scrap and rework.

  • Better control over metallurgical properties.

Production Scheduling Algorithms

Advanced scheduling models using algorithms like Brain Storm Optimization (BSO) minimize production time and improve line efficiency by optimizing batch sequencing and resource allocation.

Process Simulation and Modeling

Simulation tools help predict temperature distribution, stress, and material flow, allowing engineers to optimize die design and process parameters before production.

Conclusion

Optimizing the aluminum extrusion process requires a holistic approach involving precise control of billet temperature, extrusion speed, die design, quenching, and secondary treatments. Leveraging modern technologies such as real-time temperature monitoring, advanced scheduling algorithms, and simulation tools can significantly enhance product quality, increase throughput, and reduce costs. Continuous innovation and process refinement remain key to meeting the evolving demands of industries relying on aluminum extrusions.

Frequently Asked Questions (FAQs)

Q1: What is the ideal billet heating temperature for aluminum extrusion?

The ideal billet heating temperature depends on the alloy and billet condition; for 6063 alloy, it ranges from 430°C to 520°C, with homogenized billets requiring lower temperatures.

Q2: How does extrusion speed affect product quality?

Higher extrusion speeds increase temperature in the deformation zone, risking cracks and defects; speed must be controlled and reduced progressively to maintain quality.

Q3: What role does quenching play in extrusion?

Quenching rapidly cools the extruded profile to preserve strengthening phases, enhancing mechanical properties and preventing unwanted precipitation.

Q4: How can extrusion yield be improved?

Using multi-hole dies and maintaining clean, undamaged extrusion containers can increase yield by reducing scrap and extrusion pressure.

Q5: What technologies help in optimizing aluminum extrusion?

Real-time temperature monitoring with advanced pyrometers, scheduling algorithms like BSO, and process simulation tools are key technologies for optimization.

Article Summary

This article delves into aluminum extrusion process optimization, focusing on billet heating, extrusion speed control, quenching, and secondary treatments. It highlights the importance of precise temperature management, advanced extrusion techniques, and technological innovations like real-time monitoring and scheduling algorithms. These strategies collectively improve product quality, increase efficiency, and reduce waste in aluminum extrusion manufacturing.
