Aluminum extrusion is a critical manufacturing process used to create complex profiles by forcing heated aluminum billets through a shaped die. The capacity of the aluminum extrusion press-the maximum force it can exert-is a fundamental factor that determines the size, complexity, and quality of the extruded profiles. Selecting the right extrusion press capacity ensures efficient production, high-quality output, and cost-effectiveness.

This comprehensive article explores the key considerations in determining aluminum extrusion press capacity, including extrusion ratios, profile types, material properties, production demands, and machine specifications. It also covers how to calculate tonnage requirements, the impact of profile complexity, and future trends in extrusion technology.

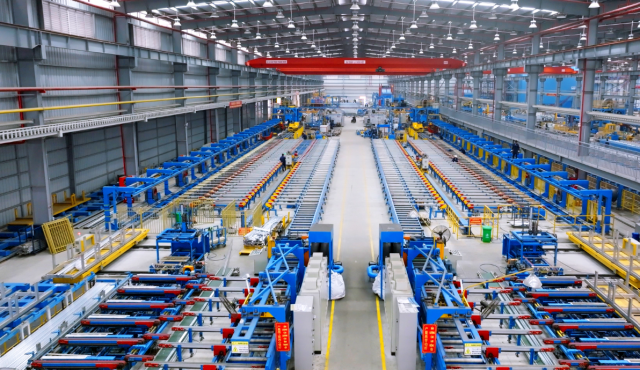

Understanding Aluminum Extrusion Press Capacity

What is Aluminum Extrusion Press Capacity?

The capacity of an aluminum extrusion press is typically expressed in tons or millions of newtons (MN) and represents the maximum force the press can apply to push aluminum through a die. This force must overcome the resistance of the aluminum alloy as it deforms and flows into the desired shape.

Press capacities vary widely-from smaller presses around 500 tons to heavy presses exceeding 15,000 tons-depending on the size and complexity of the aluminum profiles being produced.

Key Factors Influencing Press Capacity

Extrusion Ratio

The extrusion ratio is a crucial parameter defined as the ratio of the cross-sectional area of the aluminum billet (extrusion container) to the cross-sectional area of the final extruded profile. A higher extrusion ratio means the aluminum undergoes more deformation, requiring greater press force.

Extrusion Ratio=Cross-sectional area of billetCross-sectional area of profile\text{Extrusion Ratio} = \frac{\text{Cross-sectional area of billet}}{\text{Cross-sectional area of profile}}

Calculating this ratio helps estimate the tonnage needed for extrusion. Typical extrusion ratios range from 8 to 12 for initial extrusions, but secondary extrusions can have higher ratios.

Profile Specifications

  • Size: Larger profiles require more force to push through the die, increasing press capacity needs.

  • Wall Thickness: Thicker walls increase deformation resistance, demanding higher tonnage.

  • Complexity: Profiles with intricate shapes, hollow sections, or multiple cavities require more force due to complex metal flow.

  • Shape: Hollow profiles generally require more tonnage than solid profiles because of the additional piercing and shaping operations.

Material Properties

Different aluminum alloys have varying strength and workability. For example, softer alloys like 6063 require less force, while harder alloys like 7075 demand higher extrusion pressures.

Production Volume and Efficiency

High production volumes may necessitate larger presses to reduce cycle times and increase throughput. Efficient presses help maintain consistent quality and reduce operational costs.

Die Design and Quality

Complex dies increase extrusion resistance and require more tonnage. Die strength and precision also limit the maximum size and complexity of extrusions.

Temperature Control

Proper billet and die temperature management influence aluminum flow. Higher temperatures reduce material viscosity, easing extrusion but may require precise press control to maintain consistent pressure.

Determining Tonnage Based on Profile Type

Solid vs. Hollow Profiles

  • Solid Profiles: Generally require lower tonnage since deformation is simpler.

  • Hollow Profiles: Need higher tonnage due to the added complexity of piercing and forming internal cavities.



Assessing Production Requirements

Annual Output

Calculate the total annual extrusion tonnage needed. For example, a production target of 3000 tons per year might be met with an 800T or 1000T press, depending on profile complexity.

Scrap Ratio and Tolerance

Higher quality tolerances and lower scrap rates may require presses with better control and higher capacity to maintain consistent extrusion pressure.

Weight per Foot and Length

Heavier and longer profiles require more force and careful handling, influencing press size and auxiliary equipment.

Choosing Between Direct and Indirect Extrusion

  • Direct Extrusion: The billet is pushed through a stationary die by a ram. This method typically requires higher tonnage due to friction and deformation resistance.

  • Indirect Extrusion: The die moves towards the billet, reducing friction and sometimes lowering tonnage requirements. This method can improve die life and extrusion quality.

Evaluating Machine Specifications

Press Size and Maximum Circumscribed Circle Diameter (CCD)

The CCD is the largest circle that can enclose the profile cross-section. Presses are rated by the maximum CCD they can handle, directly correlating to the maximum profile size.

Hydraulic System and Control

Modern presses use advanced hydraulic systems with precise pressure and temperature controls to optimize extrusion performance.

Press Classification by Capacity

  • Small: Below 1000 tons

  • Medium: 1000 – 3000 tons

  • Large: 3000 – 8000 tons

  • Heavy: Above 8000 tons

Impact of Temperature Control

Maintaining optimal billet and die temperatures affects material flow and extrusion quality. Too low temperatures increase force requirements; too high can cause defects. Temperature control systems integrated into presses help maintain consistent extrusion conditions.

Weight Considerations in Extrusion

The weight of the extruded profile per unit length influences the extrusion force. Heavier profiles require more press capacity to maintain extrusion speed and quality.

Importance of Tolerances in Extrusion

Tighter dimensional tolerances require more consistent extrusion force and often higher press capacity to avoid defects and ensure uniformity.

Applications Across Industries

Aluminum extrusion presses serve diverse industries:

  • Construction: Window frames, curtain walls, structural components.

  • Automotive: Lightweight chassis parts, heat exchangers.

  • Aerospace: High-strength, thin-walled tubes and complex profiles.

  • Electronics: Heat sinks, enclosures.

  • Consumer Goods: Sporting equipment, furniture.

  • Automation: Increased use of CNC and robotics for precision and efficiency.

  • Advanced Alloys: Development of new alloys requiring tailored press capacities.

  • Energy Efficiency: Press designs focusing on reducing power consumption.

  • Smart Presses: Integration of sensors and AI for real-time monitoring and predictive maintenance.

Frequently Asked Questions (FAQs)

1. What is an aluminum extrusion press?

It is a machine that shapes aluminum by applying high pressure to force heated billets through a shaped die to produce profiles.

2. How do I calculate the required capacity for my extrusion project?

Calculate the extrusion ratio, consider profile size, wall thickness, alloy type, and production volume to estimate the tonnage needed.

3. Why do hollow profiles require more tonnage than solid profiles?

Because hollow profiles need additional piercing and complex deformation, increasing resistance during extrusion.

4. What are common capacities for aluminum extrusion presses?

Typical presses range from 500 tons for small profiles to over 15,000 tons for large or complex industrial profiles.

5. How does alloy type affect extrusion press capacity?

Stronger or harder alloys require more force to deform, increasing the necessary press capacity.

Article Summary

Selecting the right aluminum extrusion press capacity is vital for manufacturing efficiency and product quality. Key factors include extrusion ratio, profile size and complexity, wall thickness, alloy properties, and production volume. Press capacities range from 500 tons for small profiles to over 15,000 tons for large industrial applications. Understanding these factors helps manufacturers choose the optimal press to meet their production goals while ensuring high-quality extrusion output.

This detailed guide provides a solid foundation for selecting aluminum extrusion press capacity tailored to your specific manufacturing needs.
