Introduction

In the rapidly evolving world of display technology, touchscreens have become ubiquitous in smartphones, tablets, industrial equipment, automotive systems, and more. Among the various innovations enhancing touchscreen performance and design, ON-CELL integrated touch control stands out as a pivotal advancement. This technology integrates the touch sensor layer directly onto the TFT LCD panel, offering numerous benefits such as reduced thickness, improved visibility, and enhanced touch responsiveness.

This article delves deeply into the ON-CELL integrated touch control technology, explaining its working principles, advantages, comparisons with other touchscreen technologies, applications, and future trends. To enrich your understanding, we include illustrative images and videos demonstrating the technology in action.

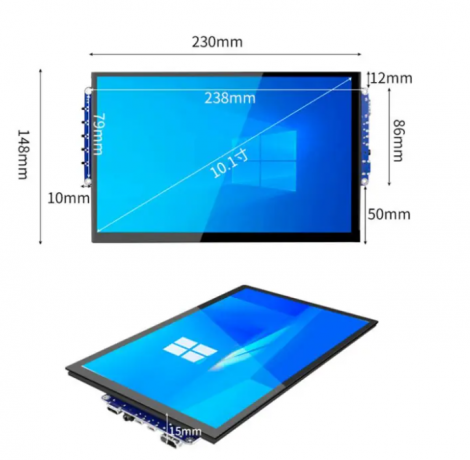

What is ON-CELL Integrated Touch Control?

Understanding ON-CELL Technology

ON-CELL technology involves manufacturing the touch sensor circuit directly on top of the TFT (Thin Film Transistor) LCD layer. Unlike traditional touchscreens that add a separate touch sensor layer above the display, ON-CELL places the touch sensors on the display panel itself, specifically on the CF (Color Filter) substrate after the TFT layer is completed.

This method uses a low-temperature coating process to apply a transparent conductive film, typically Indium Tin Oxide (ITO), which acts as the touch sensor. The touch sensors detect changes in capacitance when a user touches the screen, enabling accurate and responsive touch input.

How ON-CELL Works

When a finger or stylus approaches the screen surface, it disrupts the electrostatic field generated by the ITO touch sensors on the display. The sensors detect this change in capacitance and send signals to the touch controller integrated within the display module to process the touch location and gestures.

This integration eliminates the need for a separate touch panel, reducing the overall thickness and weight of the display while enhancing optical clarity by removing air gaps between layers.

Advantages of ON-CELL Integrated Touch Control

Slim and Lightweight Design

By integrating the touch sensors directly on the LCD panel, ON-CELL technology removes the additional touch panel layer, resulting in a thinner and lighter display module. This is especially beneficial for mobile devices where space and weight are critical factors.

Enhanced Visibility and Reduced Reflection

ON-CELL displays have no air gap between the touch sensor and the LCD, which significantly reduces internal reflections and light loss. This leads to better screen brightness, contrast, and overall visibility even under bright ambient light conditions.

Improved Touch Responsiveness and Noise Resistance

The touch controller is embedded within the display module itself, which minimizes electrical noise interference commonly encountered in conventional external touch panel setups. This results in more stable and accurate touch responses, ideal for multi-touch and gesture-based applications.

Cost Efficiency and Simplified Manufacturing

Eliminating the separate touch panel reduces the number of components and assembly steps, simplifying the supply chain and potentially lowering production costs. This makes ON-CELL technology attractive for manufacturers aiming to balance performance and cost.

ON-CELL vs. Other Touchscreen Technologies

Feature ON-CELL IN-CELL OGS (One Glass Solution)
Touch Sensor Location On top of TFT LCD layer Integrated within LCD pixel layer Integrated into a single glass layer
Display Thickness Thin, slightly thicker than In-cell Thinnest, fully integrated Ultra-thin, combines touch & cover glass
Touch Points Support Typically up to 5 points Supports multi-touch Supports 10+ touch points
Manufacturing Process Low-temperature coating on CF substrate Integrated during LCD fabrication High-temperature coating on glass lens
Optical Clarity High, due to no air gap Very high, fewer layers Excellent, due to lamination
Durability Good Standard Very high, glass bonding improves durability
Cost Moderate Cost-effective Higher due to complex bonding


Applications of ON-CELL Integrated Touch Control

Consumer Electronics

ON-CELL technology is widely used in smartphones, tablets, and wearable devices where thinness, light weight, and responsive touch are essential.

Industrial and Medical Equipment

Touch panels in industrial control systems and medical devices benefit from ON-CELL's durability, noise resistance, and clarity, ensuring reliable operation in demanding environments.

Automotive Displays

Car infotainment systems and dashboards increasingly adopt ON-CELL displays for their slim profiles and enhanced touch accuracy, improving user interaction and safety.

Commercial and Retail Systems

Point-of-sale terminals, kiosks, and interactive signage utilize ON-CELL technology to provide responsive and visually appealing touch interfaces.

Challenges and Limitations

While ON-CELL technology offers many benefits, it also has some limitations:

  • Touch Point Limitations: ON-CELL typically supports up to 5-point touch, which may not suffice for applications requiring extensive multi-touch capabilities.

  • Size Constraints: It is generally applied to displays smaller than 7 inches due to manufacturing process limitations.

  • Temperature Sensitivity: The low-temperature coating process limits the performance and durability compared to high-temperature processes used in OGS technology.

Research and development continue to push the boundaries of ON-CELL technology, focusing on:

  • Increasing Touch Point Support: Enhancing multi-touch capabilities to rival or surpass OGS.

  • Expanding Display Sizes: Adapting ON-CELL for larger displays in tablets and monitors.

  • Improved Durability: Combining ON-CELL with advanced cover glass treatments to increase scratch and impact resistance.

  • Integration with Flexible Displays: Exploring ON-CELL for foldable and flexible devices to maintain slimness and touch accuracy.

Frequently Asked Questions (FAQs)

Q1: What is the main difference between ON-CELL and IN-CELL touch technologies?

A1: ON-CELL places the touch sensor on top of the TFT LCD layer, while IN-CELL integrates the touch sensor within the LCD pixel layer itself, making IN-CELL displays thinner and more integrated.

Q2: Can ON-CELL technology support multi-touch gestures?

A2: Yes, ON-CELL supports multi-touch but is typically limited to 5 touch points, which is fewer than OGS technology that can support 10 or more points.

Q3: Does ON-CELL technology improve display brightness?

A3: Yes, by eliminating the air gap between the touch sensor and LCD, ON-CELL reduces internal reflections, resulting in better brightness and visibility.

Q4: Is ON-CELL technology more cost-effective than traditional touchscreens?

A4: It can be more cost-effective due to fewer components and simplified assembly, but costs vary depending on the application and manufacturing scale.

Q5: What devices commonly use ON-CELL touchscreens?

A5: ON-CELL is commonly used in smartphones, tablets, industrial equipment, automotive displays, and commercial touch systems.

Article Summary

ON-CELL integrated touch control technology revolutionizes touchscreen design by embedding touch sensors directly on the TFT LCD layer. This approach reduces display thickness and weight, enhances visibility by eliminating air gaps, and improves touch responsiveness with integrated controllers. While typically supporting up to 5-point touch and smaller display sizes, ON-CELL offers cost and manufacturing efficiencies, making it ideal for smartphones, industrial, automotive, and commercial applications. Future advancements aim to expand touch capabilities and durability, solidifying ON-CELL's role in next-generation displays.
