Advanced Insights into SIP Panels Production Line: Technology, Process, and Benefits

Structural Insulated Panels (SIPs) have revolutionized modern construction by offering energy-efficient, durable, and cost-effective building solutions. Central to their widespread adoption is the sophisticated SIP panels production line, which ensures high-quality, consistent manufacturing of these innovative panels. This article delves deep into the technology, manufacturing processes, equipment, and advantages of SIP panels production lines, providing a comprehensive understanding for industry professionals and enthusiasts alike.

What Are SIP Panels?

SIP panels are composite building materials consisting of an insulating foam core sandwiched between two structural facings, typically oriented strand board (OSB). They provide superior thermal insulation, structural strength, and quick assembly, making them ideal for walls, roofs, and floors in residential and commercial buildings.

Overview of SIP Panels Production Line

What Is a SIP Panels Production Line?

A SIP panels production line is a set of integrated machinery and equipment designed to automate and streamline the manufacturing of SIPs. These lines handle everything from raw material preparation, adhesive application, panel assembly, pressing, curing, to cutting and finishing, ensuring precision and efficiency.

Types of SIP Production Lines

• Semi-Automatic Lines: These involve manual loading and unloading with automated glue application and pressing. They are suitable for moderate production volumes and require fewer operators.

• Fully Automatic Lines: These lines feature automated assembly, pressing, and unloading, capable of high throughput with minimal labor.

• Jumbo SIP Lines: Designed for producing large-format panels or even entire wall sections, optimizing factory prefabrication.

Key Components of a SIP Panels Production Line

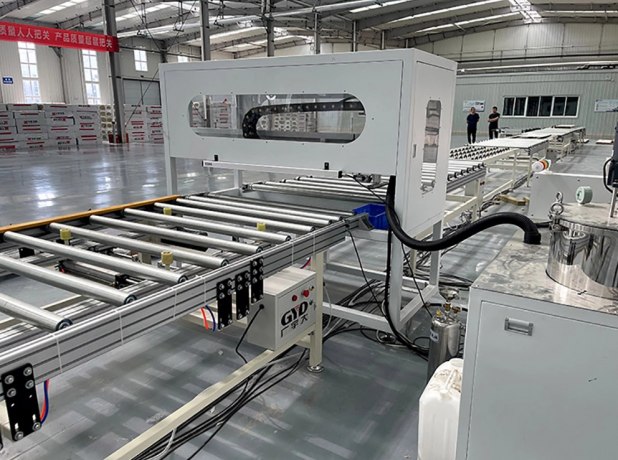

Adhesive Application System

The adhesive, typically a one-component polyurethane (PUR) glue, is applied precisely on OSB boards using automated glue-applying machines. The glue's open joint time (OJT) and pressing time (PT) are critical parameters that influence production speed and panel quality.

Panel Assembly Table

Boards and insulating cores (e.g., EPS foam) are placed on an assembly table, aligned by stops, and clamped to ensure accurate positioning before pressing.

Pressing Units

Presses apply uniform pressure across the panel surface to bond the layers. Modern presses use pneumatic airbags to distribute force evenly, ensuring strong adhesion and panel flatness.

Cutting and Finishing Machines

After curing, panels are cut to size and may be milled or grooved according to project specifications. CNC technology is often employed for high precision.

Detailed SIP Panels Manufacturing Process

Step 1: Polystyrene Cutting

Expanded polystyrene (EPS) or other insulating cores are cut to the required thickness and dimensions using CNC or hot-wire cutting machines.

Step 2: Adhesive Application

Using a computer-controlled glue head, thin strips of PUR adhesive are applied on OSB boards. Water mist may be sprayed to activate the glue curing process.

Step 3: Panel Assembly

The adhesive-coated OSB boards sandwich the EPS core on the assembly table, aligned and clamped precisely.

Step 4: Pressing and Curing

The assembled panels move into presses where pressure is applied for a set duration (e.g., 40 minutes). This step ensures a strong, uniform bond.

Step 5: Cutting and Milling

Once cured, panels are cut to project-specific sizes and milled for joints or fittings using CNC routers.

Step 6: Quality Control and Storage

Finished panels undergo inspection for dimensional accuracy, adhesion quality, and surface finish before storage or shipment.

Advantages of Using a SIP Panels Production Line

Efficiency and High Throughput

Automated glue application and pressing allow continuous production, significantly reducing labor time and increasing output. For example, lines with multiple presses can produce over 200 panels per shift.

Consistency and Quality Control

Computer-controlled processes ensure uniform adhesive application and precise panel dimensions, resulting in consistent product quality essential for structural integrity.

Customization Flexibility

Production lines can be adjusted to manufacture panels of various thicknesses, sizes, and core materials, meeting diverse architectural and insulation requirements.

Cost-Effectiveness

Reduced labor costs, minimized material waste, and faster production cycles lower overall manufacturing expenses, translating into competitive pricing.

Environmental Benefits

SIP panels are lightweight, reducing transportation energy. The use of recyclable materials and efficient production processes further decreases environmental impact.

Durability and Performance

Panels produced in controlled factory conditions exhibit superior resistance to weather, fire, and pests, ensuring long-lasting building envelopes.

Innovations and Trends in SIP Panels Production

Advanced Automation and CNC Integration

Modern lines incorporate CNC cutting and drilling, enabling precise fabrication of complex panel shapes and integrated openings for windows and doors.

Dedicated Cement Panel Lines

Some manufacturers have developed specialized lines to produce cement-based SIPs, enhancing fire resistance and structural performance for demanding applications.

Jumbo Panel Production

Large-format SIPs allow factory-built wall sections, speeding up onsite assembly and improving construction quality.

Case Study: Typical Production Line Specifications

• Adhesive Application: Automated portal with adjustable head

• Presses: 2 to 6 portal-type presses with pneumatic airbags applying up to 17 tons of force

• Production Capacity: 50 to 250 panels per 8-hour shift, depending on line configuration

• Personnel: Typically 2 operators plus forklift driver

• Panel Dimensions: Width ~1250 mm, length 2500-3000 mm, thickness 100-230 mm

Challenges and Considerations

• Glue Selection: Choosing PUR glue with appropriate open joint time and curing characteristics is crucial for production efficiency.

• Temperature Control: Production environment temperature (ideally 20–25℃) affects glue curing and panel quality.

• Material Supply: Reliable sourcing of certified OSB and insulation materials is essential.

• Investment Cost: High initial capital for fully automated lines may be a barrier for smaller manufacturers.

Frequently Asked Questions (FAQs)

Q1: What is the typical production capacity of a SIP panels production line?

A1: Depending on the number of presses and automation level, production capacity ranges from 50 to over 200 panels per shift.

Q2: What materials are used in SIP panels?

A2: Commonly, OSB boards are used as facings with EPS foam as the core, though other materials like cement boards and rock wool can be used.

Q3: How does automation improve SIP panel quality?

A3: Automation ensures consistent adhesive application, precise panel dimensions, and uniform pressing pressure, enhancing structural integrity.

Q4: Can SIP panels be customized for different building designs?

A4: Yes, production lines can adjust panel size, thickness, and core materials to meet specific project requirements.

Q5: What environmental benefits do SIP panels offer?

A5: SIPs reduce energy consumption during construction and operation, use recyclable materials, and lower transportation emissions due to their lightweight nature.

Article Summary

This article provides an in-depth exploration of SIP panels production lines, detailing the manufacturing process, key equipment, and technological innovations. It highlights the efficiency, quality, customization, and environmental benefits of automated SIP production, offering valuable insights for manufacturers and builders seeking advanced, cost-effective building solutions.
