Surface Mount Technology continues to evolve, but one component has remained the backbone of automated PCB assembly: SMT Feeders. Although often overshadowed by high-speed placement heads or inspection systems, feeders determine how smoothly components flow into the production line. Their accuracy, reliability, and compatibility can directly affect pick-and-place performance, product yield, and throughput.

This article dives deep into the anatomy, types, performance factors, purchasing considerations, maintenance methods, and trends shaping SMT feeder technology. It is written for engineers, purchasing managers, EMS operators, and business owners looking to strengthen their understanding before making investment decisions.



Understanding What SMT Feeders Do

SMT feeders are devices that supply components to pick-and-place machines in a controlled, continuous manner. They index the tape, tray, tube, or stick that holds components and position them precisely at the pick point.

Without feeders, machines would not be able to access components at consistent speeds or maintain manufacturing stability. They determine how reliably components are delivered and how efficiently production lines operate.



Core Functions of SMT Feeders

  • Holding and advancing component media

  • Positioning components at an exact pick location

  • Keeping the loading process stable during high-speed feeding

  • Ensuring minimal tape wastage and misfeeds

  • Supporting different component packaging formats

Even the most advanced placement machines are limited by the feeders attached to them. A poor feeder can reduce output rate, cause frequent jamming, or lead to component misplacement on the PCB.



Types of SMT Feeders

SMT feeders come in multiple forms, each engineered for specific packaging types or performance needs.



Tape Feeders

Tape feeders (also called reel feeders) are the most widely used type. They handle carrier tapes wound on reels, supporting everything from 0201 resistors to large ICs. Tape feeders vary by width, pitch, and mechanism.

Tape feeders can be:

  • Electric

  • Pneumatic

  • Mechanical

Electric feeders are increasingly dominant due to speed, indexing accuracy, and energy efficiency.



Tray Feeders

Tray feeders supply components stored in JEDEC trays. They are crucial for large ICs, BGAs, QFNs, and devices sensitive to mechanical stress. Machines often use multiple stacked trays or automatic tray exchangers to maximize uptime.



Tube Feeders

Tube feeders, or stick feeders, accommodate components packaged in antistatic tubes. They are commonly used for connectors, SOP ICs, and logic devices. While less popular than tape feeders, they remain vital for specific component categories.

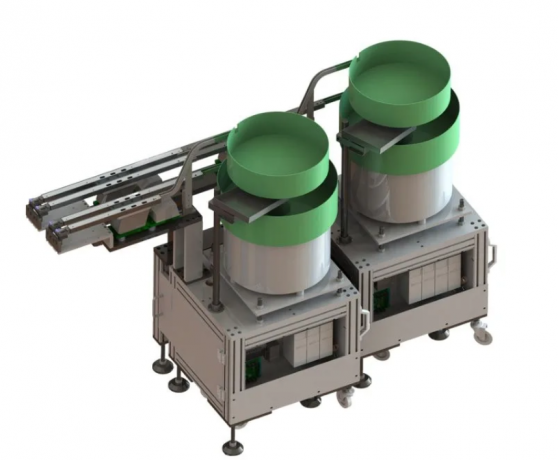

Bulk Feeder Systems

Bulk feeders are used for chip resistors, capacitors, and high-volume SMD components supplied in bulk form. They rely on vibration or sorting mechanisms to present parts to the pick head.



Intelligent Feeders

Intelligent feeder technology integrates RFID tags, sensors, and digital tracking. These feeders support automated inventory management and reduce human errors during material setup.



Comparison: Common SMT Feeder Types

Feeder Type Typical Component Format Advantages Drawbacks Best Use Case
Tape Feeder Components on carrier tape High speed, stable, widely compatible Requires careful calibration High-volume mass production
Tray Feeder JEDEC trays Ideal for large ICs, safe handling Takes more space ICs, BGAs, QFNs
Tube Feeder Antistatic tubes Good for long components Lower speed vs tape Connectors, SOP packages
Bulk Feeder Loose components High throughput for chip parts Requires sorting mechanism Resistors, capacitors
Intelligent Feeder RFID-enabled, tape/tray Error reduction, automated tracking Higher cost Smart factories, EMS plants



Key Components That Make Up an SMT Feeder

A high-quality SMT feeder contains several mechanical and electronic systems engineered to work together seamlessly.



Mechanical Structure

The body consists of:

  • Tape guide rails

  • Indexing wheel

  • Cover tape take-up mechanism

  • Locking clamp

  • Gear or motor assembly

These provide structural rigidity and accurate movement.



Electronic Control System

High-speed pick-and-place operations depend on precise micro-adjustments powered by:

  • Servo motors

  • Stepper motors

  • Sensors

  • Microcontroller units (MCUs)

Modern electric feeders often feature error detection, sync control, and fault alarms.



Cover Tape Tension Control

Inconsistent cover tape peeling is one of the main reasons for picking failures. Good feeders ensure stable tension to prevent component pop-outs.



What Makes a Good SMT Feeder?

Choosing the right SMT feeder requires focusing on attributes that directly affect performance.



Indexing Accuracy

Precise component positioning reduces mis-picks and improves yield. Electric feeders usually offer higher indexing precision.



Durability and Build Quality

Industrial feeders endure thousands of load cycles. Aluminum alloys, hardened gears, and high-grade bearings generally last longer and maintain accuracy over time.



Compatibility

Not every feeder fits every machine. Some brands provide universal options, while others lock users into proprietary formats.



Changeover Speed

Fast, tool-less feeder loading improves productivity, especially in high-mix environments.



Component Support Range

A feeder should support the specific tape widths and pitch sizes your production demands.



Smart Features

Intelligent feeders can significantly reduce material setup errors and shorten overall line preparation time.



SMT Feeder Brands and Platform Differences

Each pick-and-place machine brand uses its own feeder platform. Some of the most recognized globally include:

  • Yamaha

  • Panasonic

  • Fuji

  • Juki

  • ASM (Siplace)

  • Hanwha/Samsung

  • Europlacer

Modern EMS plants often mix different feeder styles depending on line configuration. Universal or cross-platform feeders exist, but not all machines support them.



Cost Breakdown of SMT Feeders

SMT feeder pricing varies widely depending on machine platform, width, and smart features.



Price Influencing Factors

  • Feeder type

  • Width and pitch

  • Whether it is smart/ intelligent

  • Mechanical vs electric

  • Brand exclusivity

  • Quality of components

  • Availability of spare parts

Electric, intelligent feeders can cost significantly more than traditional mechanical feeders but deliver ROI through speed and error reduction.



Setting Up SMT Feeders Correctly

Production issues often originate not from machines but from incorrect feeder setup. Proper setup is essential for smooth operation.



Steps for Proper Setup

  • Mount the feeder securely in the feeder bank

  • Verify reel alignment

  • Ensure correct tape width is matched

  • Test indexing before production runs

  • Confirm pick location coordinates



Common Setup Mistakes

  • Mounting the wrong tape width

  • Incorrect pitch configuration

  • Improper cover tape tension

  • Loose mounting or locking

  • Using worn feeder tips or gears



Maintenance and Troubleshooting for SMT Feeders

SMT feeders, especially electric versions, require scheduled maintenance to prevent downtime.



Routine Maintenance Checklist

  • Clean tape path and dust buildup

  • Lubricate moving parts

  • Check spring tension and rollers

  • Inspect sensors and electrical connections

  • Replace worn gears and peeling mechanisms



Troubleshooting Common Problems

Misfeed or Jam

Usually caused by incorrect loading or worn gears.

Component Skipping

Often due to incorrect pitch settings or sensor issues.

Loose Component Pick Position

May result from worn feeder indexing wheels.

Cover Tape Breakage

Often caused by improper peeling tension or tape quality issues.



Best Practices to Improve SMT Feeder Performance

Use High-Quality Reels

Low-grade tapes cause feeding inconsistencies.

Regular Calibration

Periodic calibration ensures accuracy and long-term reliability.

Keep Dedicated Feeders by Component Family

Minimizes adjustments required between jobs.

Employ Digital Feeder Management Systems

RFID-aware systems reduce material confusion and wasted setup time.



When Should You Replace an SMT Feeder?

A feeder should be replaced when:

  • It skips components frequently

  • Repairs exceed replacement value

  • Production speed no longer meets requirements

  • It becomes incompatible with newer smart factory software



Trends Driving the Future of SMT Feeders

Intelligent Automation

RFID-tagged feeders with automatic recognition reduce human error and accelerate line setup.

Micro-Component Capability

Feeding technologies are optimizing for 0201, 01005, and even 008004 packages with extreme precision.

AI-Assisted Material Tracking

Factory software can now track usage, forecast depletion, and support predictive maintenance.

Cross-Platform Universal Feeders

Businesses are looking for more flexible solutions to reduce capital expenditures.



Buying Guide: How to Choose the Right SMT Feeder

When selecting SMT feeders, consider the following criteria.

Production Type

  • High volume: choose electric, high-speed, intelligent feeders.

  • High mix, low volume: prioritize quick changeover and flexible feeders.

Component Packaging

Ensure feeders support all your tape widths, pitch sizes, and tray formats.

Brand Compatibility

Confirm the feeder model matches your pick-and-place platform.

Budget and ROI

Smart feeders may cost more upfront but reduce long-term labor and errors.

After-Sales Service

Look for suppliers offering maintenance service, spare parts, and technical support.



Conclusion

SMT feeders serve as the backbone of any PCB assembly line. Their precision, reliability, and compatibility directly impact throughput and yield. Knowing how they work, how to maintain them, and how to choose the right ones empowers manufacturers to run smoother lines and improve quality.

In an era of digital manufacturing, the evolving intelligent feeder ecosystem will continue to push factories toward greater automation, efficiency, and transparency.



Frequently Asked Questions

1. What is the main role of an SMT feeder?

It delivers components from tapes, trays, or tubes to the pick point of a pick-and-place machine with consistent accuracy.

2. Are electric SMT feeders better than mechanical feeders?

Electric feeders offer better precision, speed, and reliability, making them ideal for modern high-volume production.

3. How often should SMT feeders be maintained?

Light maintenance is recommended daily or weekly depending on usage, with deeper checks monthly.

4. What causes components to misfeed?

Misfeeds typically come from worn gears, incorrect pitch settings, poor tape quality, or improper feeder loading.

5. Can feeders be used across different machine brands?

Some universal feeders exist, but compatibility depends heavily on machine design and firmware.



Summary

This article explores SMT Feeders in depth, covering types, components, maintenance, setup tips, selection guide, and future trends. It explains how feeders impact accuracy and productivity in PCB assembly, includes a comparison table, and provides practical insights for manufacturers and engineers.
