Surface Mount Technology (SMT) manufacturing is built on speed, accuracy, and repeatability. At the center of this delicate balance lies an often overlooked but critical component: the SMT feeder. While pick-and-place machines receive most of the attention, it is the feeder that determines whether the machine can truly deliver stable, high-output performance.

This comprehensive guide explores how SMT feeders work, the major types, how to select them, maintenance principles, and the technological trends reshaping the industry. Whether you operate a small electronics workshop or an industrial-level smart factory, understanding SMT feeders will directly influence your efficiency, yield rate, and production cost.



Understanding the Role of SMT Feeders in Modern Electronics Assembly

SMT feeders act as the interface between components and the pick-and-place machine. Their mission is simple: deliver electronic components consistently, accurately, and at the right timing. But behind this simple purpose is a sophisticated electromechanical system that ensures components arrive at the nozzle in perfect orientation.

If a feeder fails, the entire production line suffers—misplacements increase, cycle time slows, and the machine may stop entirely. Therefore, feeder performance is one of the strongest factors affecting SMT output efficiency.

Key functions include:

  • Positioning tape, tray, tube, or loose components

  • Ensuring consistent pitch indexing

  • Presenting components accurately to the pickup zone

  • Communicating with the machine about status and availability

  • Preventing jams, double feeding, or component damage

In short, feeders are the backbone of uninterrupted SMT production.



Major Types of SMT Feeders

SMT feeders come in many forms depending on component packaging, production environment, machine compatibility, or automation level. Below are the most common types used across the industry.

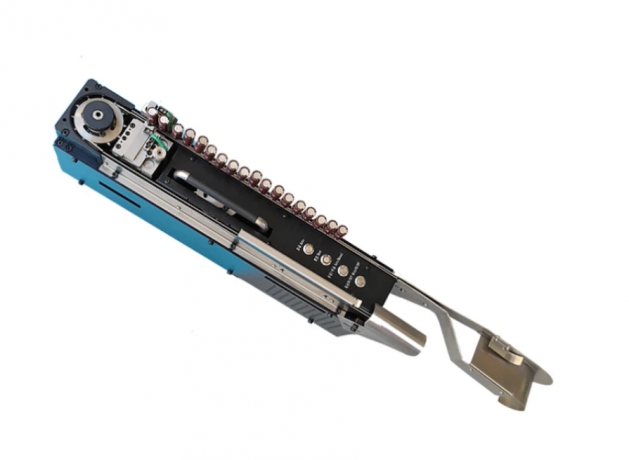

Tape Feeders

These are the industry standard and are compatible with almost all pick-and-place equipment. They handle embossed, paper, or plastic carrier tapes. Ideal for:

  • Small components (0402, 0201, 01005)

  • General passive components

  • ICs in embossed pockets

Tape feeders may be mechanical, electric, or intelligent (smart).



Vibration Feeders

Designed for tube-based components such as transistors and diodes. By vibrating the component tube gently, the feeder positions one component after another into the pickup location.



Tray Feeders

Components packed in JEDEC trays—like QFPs, BGAs, CSPs—require tray feeders. These feeders allow multi-tray stacking for extended production capacity.



Stick Feeders

Mostly used for odd-form components that cannot be taped or trayed efficiently. Their structure is similar to vibration feeders but optimized for stability.



Bulk Feeders

For resistors, capacitors, and LEDs sold in massive quantities. These feeders use bowls, spirals, or mechanical systems to orient components before feeding them to the machine.



Mechanical vs. Electric vs. Intelligent SMT Feeders

To better understand feeder evolution, the following table compares the three major categories.



Comparison Table: Types of SMT Feeders

Feeder Type Feeding Accuracy Speed Stability Maintenance Needs Ideal For Automation Level
Mechanical Feeder Medium Medium High (more wear) Basic mass-production Low
Electric Feeder High High Medium Precision components Medium
Intelligent Feeder Very High Very High Low Smart factories, IoT-enabled lines Very High

Mechanical feeders rely heavily on springs, gears, and levers—lower cost but higher wear.

Electric feeders use motors for precise pitch control, improving repeatability.

Intelligent feeders integrate sensors, memory chips, safety locks, RFID, and machine communication capabilities. They support real-time monitoring, automatic error prevention, and setup optimization.



How SMT Feeders Improve Production Efficiency

Even the fastest pick-and-place machine can only perform as well as its feeders allow. High-quality feeders boost efficiency through:

  • Stable component presentation

  • Lower pickup errors

  • Reduced machine downtime

  • Fast product changeover

  • Improved traceability

  • Longer service lifespan

A well-tuned feeder system allows the entire SMT assembly line to operate closer to theoretical maximum speed.



Choosing the Right SMT Feeder for Your Manufacturing Needs

Selecting the ideal feeder depends on production volume, component diversity, product types, and the pick-and-place machine you use. Below is a practical evaluation framework.



1. Machine Compatibility

Not all feeders fit all machines. Select feeders that match:

  • Brand (Yamaha, JUKI, Panasonic, Fuji, Samsung, ASM, etc.)

  • Model series

  • Feeder base design

  • Communication protocols

Even for the same brand, different generations may require different feeder models.



2. Component Packaging

Consider the following:

  • Tape width: 8mm, 12mm, 16mm, 24mm, 32mm, 44mm, 56mm

  • Tray size and height

  • Tube shape

  • Bulk orientation mechanism

Choosing an incorrect feeder can cause constant jams.



3. Speed Requirements

High-speed lines benefit from:

  • Electric or intelligent feeders

  • Lightweight structures

  • Accurate pitch drive

  • Low vibration mechanisms



4. Component Sensitivity

Sensitive components require:

  • Smooth feeding

  • Anti-static materials

  • Impact-free motor-driven indexing



5. Budget Considerations

Mechanical feeders are budget-friendly but may not meet modern automation needs.

Intelligent feeders cost more upfront but reduce human error and long-term maintenance expenses.



Deep Dive: Why Smart SMT Feeders Are the Future

Intelligent SMT feeders bring “smart factory” capabilities to traditional SMT lines. Their advantages include:



1. Digital ID and Memory Storage

Each feeder carries component data stored on an RFID chip—preventing incorrect part loading.



2. Real-Time Monitoring

Unexpected conditions such as:

  • Tape slack

  • Feeding resistance

  • Component depletion

can be detected instantly.



3. Integration With MES and ERP

Smart feeders connect with factory software to:

  • Improve traceability

  • Track material usage

  • Automate job scheduling

  • Provide operator instructions



4. Automatic Calibration

Some feeders self-adjust based on:

  • Tape tension

  • Nozzle pickup patterns

  • Height measurement data

Smart feeders enable data-driven, error-free SMT production.



Common SMT Feeder Problems and How to Fix Them

Even the best feeders require maintenance. Below are frequently encountered issues and effective solutions.



1. Tape Jamming

Often caused by:

  • Worn gears

  • Wrong tape width

  • Improper operator loading

  • Damaged sprocket holes

Solution: Regular cleaning, correct tape alignment, and scheduled parts replacement.



2. Component Skipping or Double Feeding

This happens when:

  • Pitch indexing is unstable

  • The motor or spring is worn

  • The cover tape tension is too high

Adjusting pitch calibration and motor torque typically solves the problem.



3. Poor Pickup Accuracy

Often caused by:

  • Debris buildup

  • Mechanical wear

  • Damaged pocket walls in tapes

Routine cleaning and replacing worn mechanical parts are essential.



4. Feeder Memory Errors (Intelligent Feeders)

Check:

  • RFID reading distance

  • Broken data cables

  • Low battery in memory modules

Software reset and reprogramming usually fix the issue.



How to Maintain SMT Feeders for Long-Term Reliability

Feeder maintenance is both science and discipline. A stable maintenance process includes:

  • Daily cleaning of tape pathways

  • Weekly lubrication of gears and sliding blocks

  • Monthly calibration checks

  • Replacement of worn springs, sensors, and motors

  • Anti-static treatment for sensitive components

  • Storage racks to avoid accidental drops

Well-maintained feeders can last more than ten years.



Industry Trends and the Next Generation of SMT Feeders

Looking ahead, SMT feeders continue advancing in several directions:

Automation-First Design

Fully robotic automatic material loading systems are becoming standard.

AI-Assisted Feeding

AI algorithms predict failures before they happen.

Lightweight Modular Structures

Operators can perform changeovers faster with reduced physical strain.

Cloud Connected Feeder Networks

Real-time data analytics supports predictive maintenance and optimized material flow.

In short, SMT feeders are evolving from simple mechanical tools into intelligent automation assets.



Frequently Asked Questions (FAQ)

1. Are SMT feeders interchangeable between different machine brands?

Generally no. Feeders are usually brand- and model-specific due to mechanical fit and communication differences.

2. How often should SMT feeders be calibrated?

Most factories perform calibration monthly, but high-precision lines may require weekly checks.

3. What is the most durable type of SMT feeder?

Electric feeders offer a strong balance of precision and durability, while intelligent feeders add additional lifespan through reduced operator mistakes.

4. Can older SMT machines use intelligent feeders?

Some can with upgrade kits, while others may require hardware or software retrofitting.

5. Is it worth investing in smart feeders for small factories?

Yes, especially if you produce multiple product types or require fast changeovers.

Summary

SMT feeders are the foundation of efficient PCB assembly, influencing precision, speed, and yield. This article explains feeder types, smart feeder advantages, selection strategies, maintenance, and industry trends. With comparison tables and practical guidance, it serves as a complete reference for modern SMT production.
